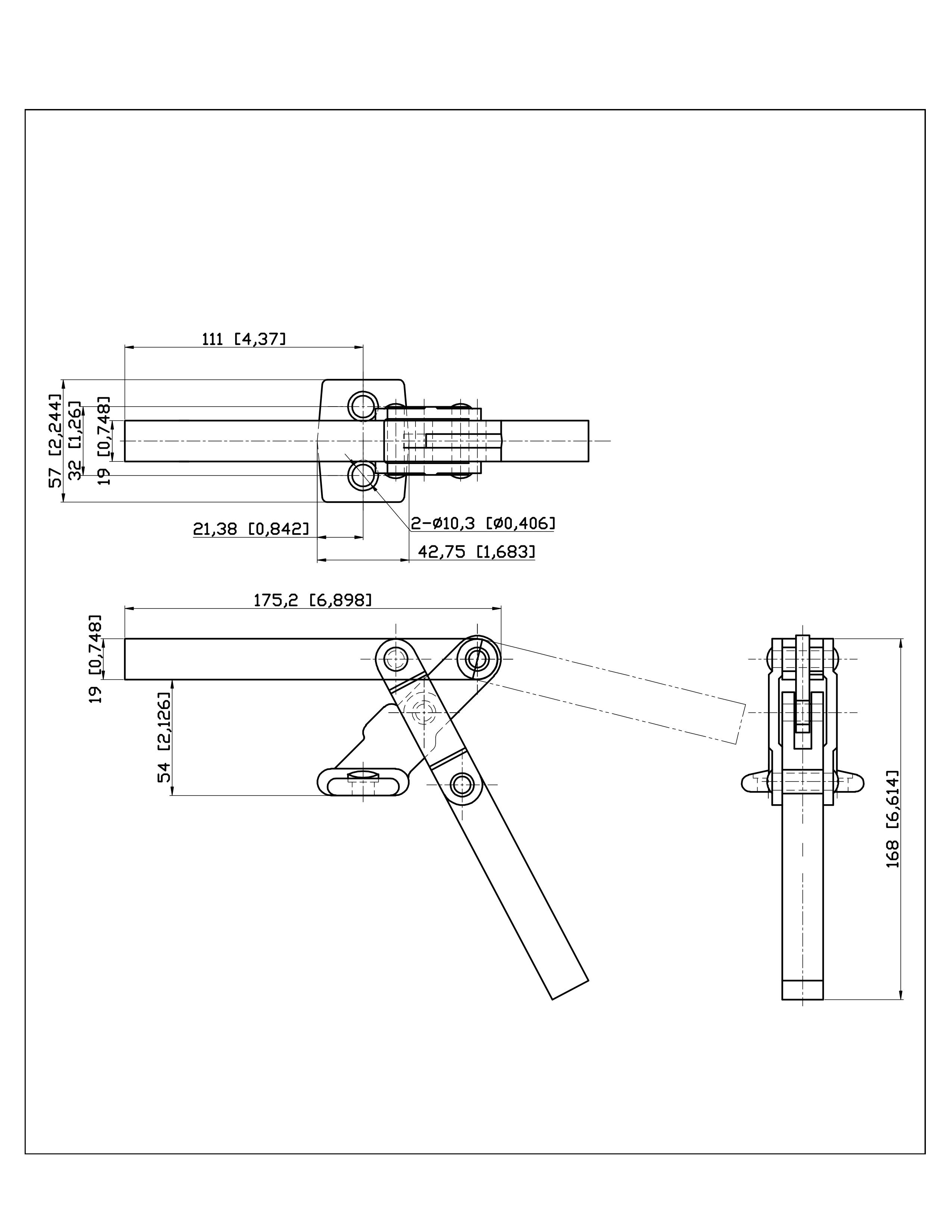

Goodhand Big Holding Force Weldable Heavy Duty Handle Toggle Clamp
GH-75027
Manual Heavy Duty Type Hold Down Handle Solid Bar Toggle Clamp
GH-7527
Features:
Quick release, big holding capacity
Application:
Welding, machining, checking fixture, assembly fixture,
woodholding, metal holding, workholding clamps
| Weight (g) | Holding Capacity (kg) |
| 1140 | 450 |
Automobile Industry
1. Welding of various vehicle frames and accessories (small sheet
metal parts) is used as positioning bolts and fixtures for welding
jigs.
Main application models:
702-C,702-D,702-K,101-J,10247,12265,304-E,304-H,303-E etc.
2. Welding inspection of various vehicle frames and accessories
(small sheet metal parts) is used as positioning bolts and fixtures
for inspecting jigs. Main application models:
12135,12137,304-C,302-F etc.
3. Stamping of all kinds of vehicle frames, accessories (small
sheet metal parts) and sheet metal door panel parts is used as
positioning bolts and fixtures for stamping parts inspecting jigs.
Main application models: 12130,12135,11412,302-F,36020 etc.
4. Welding and welding inspection of various door panels are used
as positioning bolts and fixtures for welding and testing molds.
Main application models:
702-C,702-D,101-E,10247,12130,12135,12137,304-E etc.
Furniture Manufacturing Industry
1. Metal furniture - furniture made of metal shapes. Manual toggle
clamps are used for fixtures on "welding jigs."
Main application models: 11412,203-F,225-D,302-F,304,305 series
etc.
2. Solid wood furniture - that is, furniture made of logs, quick
fixtures are used in woodworking machines, such as "profiling
woodworking milling machines" and "woodworking chamfering
machines".
Main application models: 200-W-220-WLH series,21385,225-D etc.
3. For carved furniture, such as "mahogany furniture," manual
toggle clamps are used as fixtures on woodworking carving machines.
Main application models: 220-WLH,302-D etc.
4. Oriented strand lumber production - that is, the log is
processed into the oriented strand lumber, which is used as a
fixture on the "board-sawing machine."
Main application models: F clamps.
Note: Plate furniture - furniture made of various plywood, with one
or two manual toggle clamps occasionally used.
Note: All products or parts can be used when similar to the above
four points regarding the manufacture of materials and production
methods (e.g., fitness equipment such as treadmills, musical
instruments and other instruments made of solid wood, other carved
products, flooring made of oriented strand lumber) and having the
characteristics of continuous mass production.
Logistics Equipment Manufacturing Industry
1. For the welding of metal parts such as fork trucks and cabs,
manual toggle clamps are used as fixtures for "welding jigs."
Main application models: 11412,10247,12265 etc.
2. For the welding of metal parts of manual movers, platform trucks
and stacking trucks, manual toggle clamps are used as fixtures for
"welding jigs."
Main application models: 11412,203-F,225-D,101-H,101-E etc.
3. For the iron wire welding of cages and cage carriers, manual
toggle clamps are used as fixtures and positioning bolts for
"welding fixtures of the iron wire.
Main application models: 203-F,201,302-F,101-A,304-C etc.
4. For the welding of racks, manual toggle clamps are used as
positioning bolts and fixtures for forming and assembling "welding
molds."
Main application models: 11412,225-D,203-F,302-F etc.
5. For the welding of metal parts of tool cabinets and mobile
cabinets, manual toggle clamps are used as fixtures for "welding
molds."
Main application models: 11412,225-D,203-F etc.
6. Barcode readers, scanners, printers.
| Q'TY PCS | 1-10 | 10-50 | 51-100 | 101-200 | 201-300 | 300+ |
| EST.DAYS | 1-3 | 3-5 | 7-10 | 15-20 | 25-30 | 35-60 |
