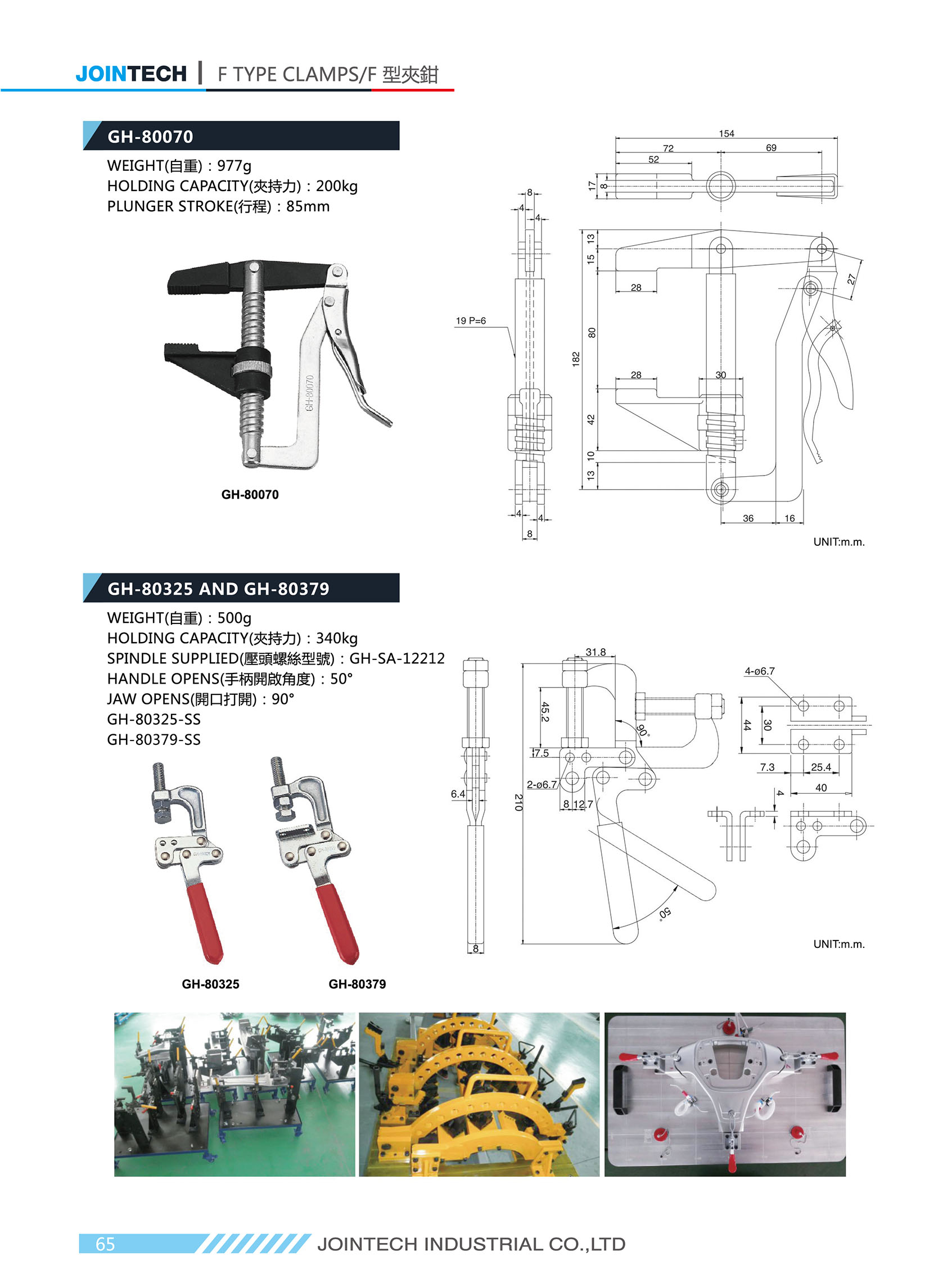

F Type Quick Release Steel Manual Adjustable Latch Toggle Clamp GH-80070 / 80325

Quick Release Adjustable Steel Pull Action Latch U-bolt Toggle Clamp GH-80070 / 80325

Features:
Pull action, big holding capacity,quickly release
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

Motorcycle Industry

1. Welding of car frames is used as positioning bolts and fixtures for welding molds.
Main application models: 12265,11412,11421,101-B,12205,10247,22175,25382,36020,304-E,304-H,303-E,36060,702-C,30509 etc.

2. Steering column: welding of front and rear forks and guard frames is used as positioning bolts and fixtures for welding jigs.
Main application models: 11421,11412,22175,36020,302-F,303-E etc.

3. The production of engine cylinder heads and cylinder blocks is used as fixtures for drilling machines.
Main application models: 25383,25382,12265-A,12132-A etc.

4. Carburetors, mufflers and wire harnesses are all used in the same way as in the "automobile industry."
Note: Manual toggle clamps can be used for all products or parts that are similar to the above three points regarding the manufacture of materials and production methods and have the characteristics of continuous mass production.

Refrigeration Equipment Industry

Refrigeration equipment mainly means medium and large cold stores, refrigerators/ cold closets, refrigeration trucks and other products. These products' manual toggle clamps are mainly used in the following aspects:
(1) Production of refrigeration equipment intermediate layer - PU foam insulation material serves as fixtures on the "foaming mold."
Main application models: 36224,36003,304-E,304-H,40341 etc.

(2) The welding of keels of cabinets, boxes and cars are used as fixtures and positioning bolts for "welding jigs."
Main application models: 11421,11412,203-F,12265,36020,304-E etc.

(3) The welding of gold sheet metal for the inner and outer layers of refrigerators, boxes and cars can be used as follows.
(3-1) For medium and small mass production, it is used in "welding molds."
Main application models: 11412,12265,210-C,203-F etc.

(3-2) For medium and large scale non-standard production, F-type clamps or crushing clamps are used, while C-type clamps are less used.

Elevator Manufacturing Industry

1. In the production of box elevators, manual toggle clamps are mainly used as fixtures for "welding molds" of box cages.
Main application models: 101-E,101-J,204-GB series etc.

2. In the production of box elevator doors, manual toggle clamps are mainly used as fixtures for "welding molds."
Main application models: 101-E,10247,25382,21384 etc.

3. In the production of escalators, manual toggle clamps are mainly used for the welding of keels as fixtures.
Main application models: F clamps.

Container Manufacturing Industry

1. In the production of a dry box body, manual toggle clamps are mainly used as positioning bolts and fixtures for welding molds of the skeleton.
Main application models: 303-E,304-H,305-H,30607,101-J,204-G etc.

2. Production of refrigerated container boxes.

3. For the production of the insulating layer for refrigerated containers, manual toggle clamps are used as fixtures on "foaming molds."
Main application models: 36224,36003 etc.
Note: One method of production is to make the inner and outer boxes well and then fill the insulation materials. This method does not require clamps (currently rare).

Pull-Action Latching Toggle Clamp

This clamp works similar to the latch on fishing tackle boxes. Its handle is appropriately aligned with the opposing latch. Then, it is pulled back down into the locking position. This is used for closing objects such as mold closures and latching doors. Ask the manufacturer of your choice to help you have a brilliant decision in no time.
Categorized into two types such as U-hook and J-hook, pull action latching toggle clamp is ideal for sealing lids and molds. With its threated adjustments, it becomes adaptable to many applications. Options include stainless steel, carbon, and rubber material.

Description:
. 100% brand new and high quality.
. Ideal for quickly holding down sheet metal or circuit boards, for machine operation, welding, mould, electronic equipment assembly, etc field.
. During clamping, the lever is controlled to prevent impact on functioning due to side thrust.
. Side Mount hold-down toggle clamp, U bar, flanged base. With rubber cap spindle.
. Plastic cover handle for easy, safe and comfortable operation.
