Pull Action Adjustable U-bolt Latch Toggle Clamp Use For Fixing Storage Box GH-4003

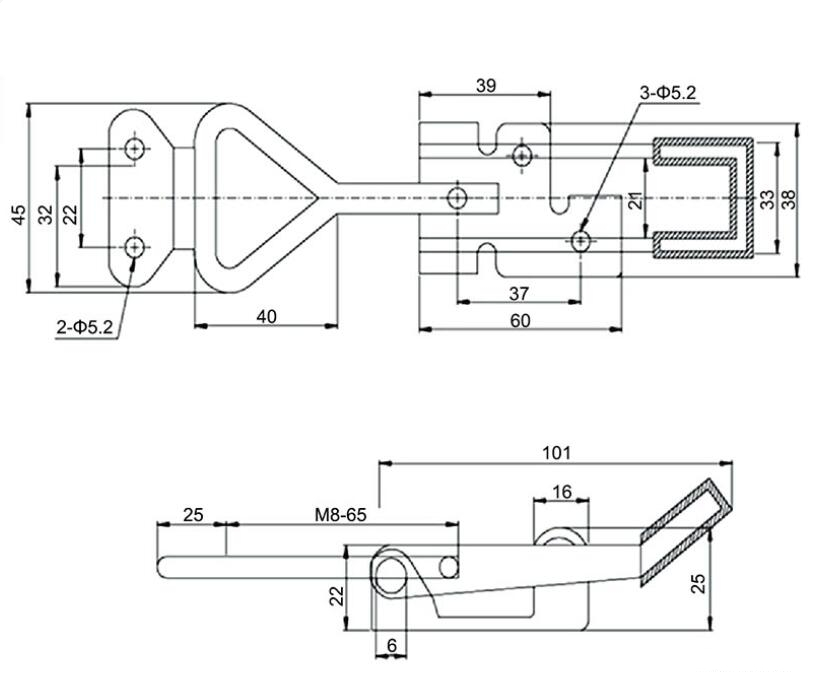

Adjustable U-bolt Steel Pull Action Latch Toggle Clamp with Lock GH-4003

Features:
Pull action, small holding capacity,quickly release
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

Motorcycle Industry

1. Welding of car frames is used as positioning bolts and fixtures for welding molds.
Main application models: 12265,11412,11421,101-B,12205,10247,22175,25382,36020,304-E,304-H,303-E,36060,702-C,30509 etc.

2. Steering column: welding of front and rear forks and guard frames is used as positioning bolts and fixtures for welding jigs.
Main application models: 4003, 11421,11412,22175,36020,302-F,303-E etc.

3. The production of engine cylinder heads and cylinder blocks is used as fixtures for drilling machines.
Main application models: 25383,25382,12265-A,12132-A etc.

4. Carburetors, mufflers and wire harnesses are all used in the same way as in the "automobile industry."

Refrigeration Equipment Industry

Refrigeration equipment mainly means medium and large cold stores, refrigerators/ cold closets, refrigeration trucks and other products. These products' manual toggle clamps are mainly used in the following aspects:
(1) Production of refrigeration equipment intermediate layer - PU foam insulation material serves as fixtures on the "foaming mold."
Main application models: 36224,36003,304-E,304-H,40341 etc.

(2) The welding of keels of cabinets, boxes and cars are used as fixtures and positioning bolts for "welding jigs."
Main application models: 11421,11412,203-F,12265,36020,304-E etc.

(3) The welding of gold sheet metal for the inner and outer layers of refrigerators, boxes and cars can be used as follows.
(3-1) For medium and small mass production, it is used in "welding molds."
Main application models: 11412,12265,210-C,203-F etc.

(3-2) For medium and large scale non-standard production, F-type clamps or crushing clamps are used, while C-type clamps are less used.

Printing Machinery Manufacturing Industry

Manual toggle clamps are used as fittings for such machines, such as stretcher machines (also known as stretching machines), copy boards (also known as exposure machines), and screen printing machines. This kind of machinery is not only used for ordinary text and pattern printing but also more for the manufacture of PCB boards in the electronics industry. Main application models: 11412,203-F,203-P,12265.

Toy Manufacturing Industry

1. Electronic toy manufacturing industry.

2. Plastic modification manufacturing industry: Generally used in the production line with injection molding ring. Manual toggle clamps are used for opening and closing the upper and lower molds on the molds of its production line.
Main application models: 20235,201-B,302-F etc.

Plastic Products Manufacturing Industry

Plastic products are basically divided into two categories: blow molding and injection molding. At present, no manual toggle clamp has been found in blow molding, while a large number of manual toggle clamps have been used for injection molding products. Even single-machine and single-model "injection molding machines" have begun to replace the old screw rod with 7-head manual toggle clamps or corner cylinders for fixing molds.

Notes:
(1) For the single-machine single-model injection molding machine, manual toggle clamp 7-heads and corner cylinders are widely used to replace the old screw rod nut fixing molds.

(2) In the loop injection molding production line, the manual toggle clamp is widely used as open/close locking mechanism for the upper and lower molds on the molds of the production line.

(3) In the production line of injection molding, the manual toggle clamp is widely used as a locking mechanism in its mold.
Main application models: 10448,302-F,36060,303-E,40341,431 etc.

Jointech Industrial Co.,Ltd is a R&D, manufacturing and sales company. In the past over 20 years, we have been focusing on the development of toggle clamps, toggle hasps, locking pliers and hose clamps. By constant accumulation and innovation, Jointech has made itself to be a new enterprise with strong technical capability and well-organized management. With the help of precise CNC machines and skilled employees, our products have been sold out to over 50 different countries.
Jointech specializes in development and design of aircraft, automobile and all manufacturing and processing industries, strives for the manufacturing industry in China to provide reliable, durable, effective and accurate tools. Jointech offers all types of fixtures for customers, not only provides all kinds of universal fixtures, but also ables to produce customized ones as per customer's requirements. People from home and abroad are warmly welcome to our factory for business activities! We bet our services will be different!
