Destaco Weldable Pneumatic Push Pull Toggle Clamp Hold Down

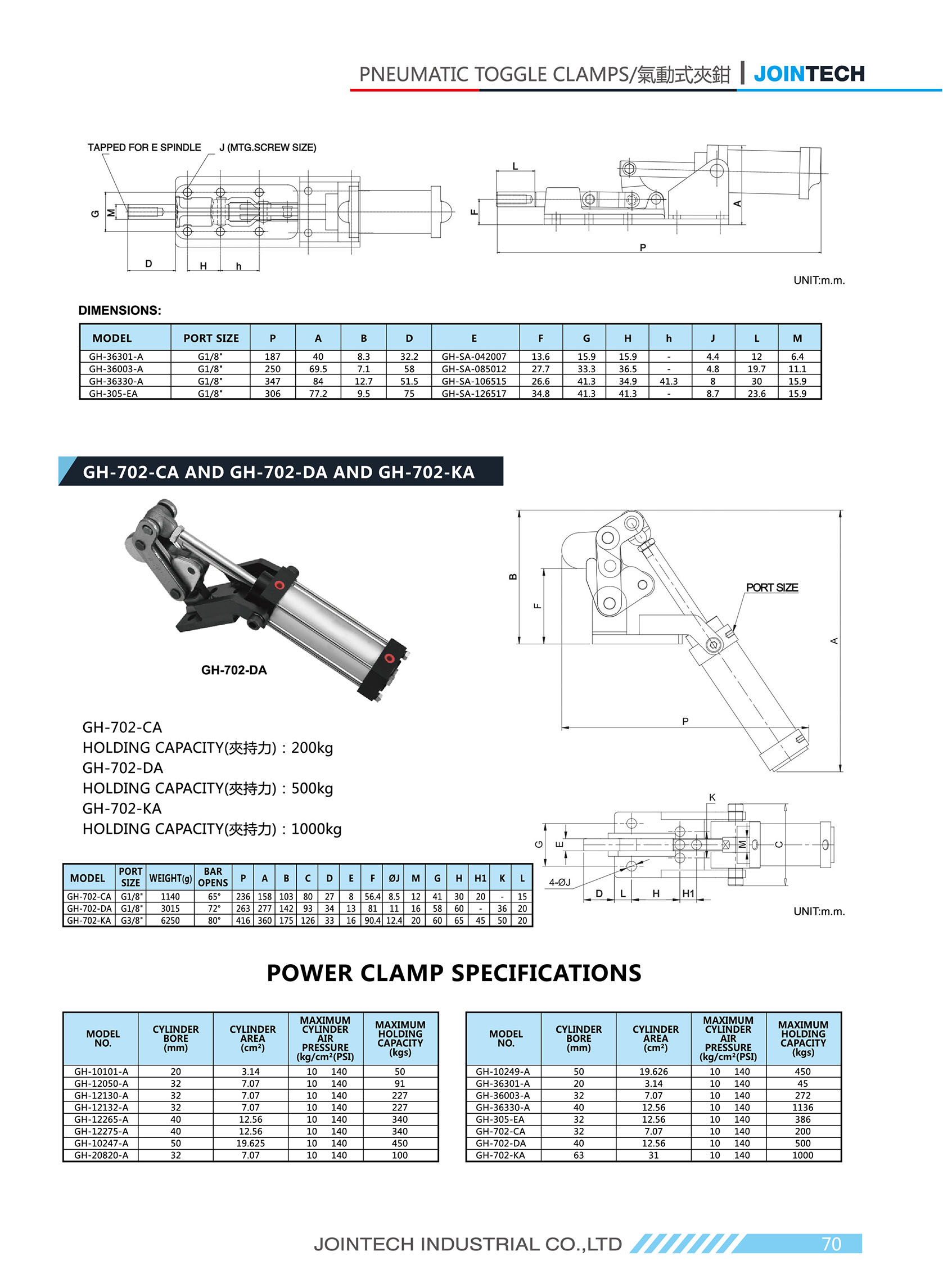

GH-702-DA
Features:
Quick release, small holding capacity, air-driven cylinder toggle
clamp
Supplied with magnetic ring for position sensing
Application:
Welding, machining, checking fixture, assembly fixture,
woodholding, metal holding, workholding clamps
| Weight (g) | Bar Opens(°) |
| 1140 | 72 |
Railway Vehicle Industry (including subways and light rail
vehicles)
1. Body keel welding is used as fixtures for welding molds.
Main application models:
101-J,10247,22502-B,11421,203-F,12130,702-C,702-D.
2. For welding of the outer metal plate of the car body, manual
toggle clamps are used as fixtures.
Main application models: F clamps.
3. Welding of door panels is used as positioning bolts and fixtures
for welding jigs. Main application models:
11412,12205,10247,225-D,21382,304-C,304-E etc.
4. Welding of seats is used as fixtures for welding fittings. Main
application models: 12265,11421,36020,22235 etc.
5. The production of molded foams for luxury seats is used as
fixtures for foaming molds. Main application models:
702-D,40341,304-H etc.
6. The adhesion of luxury auto interior accessories is used for
adhesion and fixation between interior accessories and auto bodies.
Main application models: F clamps.
Plastic Products Manufacturing Industry
Plastic products are basically divided into two categories: blow
molding and injection molding. At present, no manual toggle clamp
has been found in blow molding, while a large number of manual
toggle clamps have been used for injection molding products. Even
single-machine and single-model "injection molding machines" have
begun to replace the old screw rod with 7-head manual toggle clamps
or corner cylinders for fixing molds.
Notes:
(1) For the single-machine single-model injection molding machine,
manual toggle clamp 7-heads and corner cylinders are widely used to
replace the old screw rod nut fixing molds.
(2) In the loop injection molding production line, the manual
toggle clamp is widely used as open/close locking mechanism for the
upper and lower molds on the molds of the production line.
(3) In the production line of injection molding, the manual toggle
clamp is widely used as a locking mechanism in its mold.
Main application models: 10448,302-F,36060,303-E,40341,431 etc.
Elevator Manufacturing Industry
1. In the production of box elevators, manual toggle clamps are
mainly used as fixtures for "welding molds" of box cages.
Main application models: 101-E,101-J,204-GB series etc.
2. In the production of box elevator doors, manual toggle clamps
are mainly used as fixtures for "welding molds."
Main application models: 101-E,10247,25382,21384 etc.
3. In the production of escalators, manual toggle clamps are mainly
used for the welding of keels as fixtures.
Main application models: F clamps.
Container Manufacturing Industry
1. In the production of a dry box body, manual toggle clamps are
mainly used as positioning bolts and fixtures for welding molds of
the skeleton.
Main application models: 303-E,304-H,305-H,30607,101-J,204-G etc.
2. Production of refrigerated container boxes.
3. For the production of the insulating layer for refrigerated
containers, manual toggle clamps are used as fixtures on "foaming
molds."
Main application models: 36224,36003 etc.
Note: One method of production is to make the inner and outer boxes
well and then fill the insulation materials. This method does not
require clamps (currently rare).
Aircraft Manufacturing Industry
1. In the production of body keels, the manual toggle clamp is used
in "welding molds". The main types of use vary from factory to
factory.
2. For the riveting of outer metal sheets and gluing of inner
accessories, manual toggle clamps are used as a fixture.
Main application models: F clamps.
