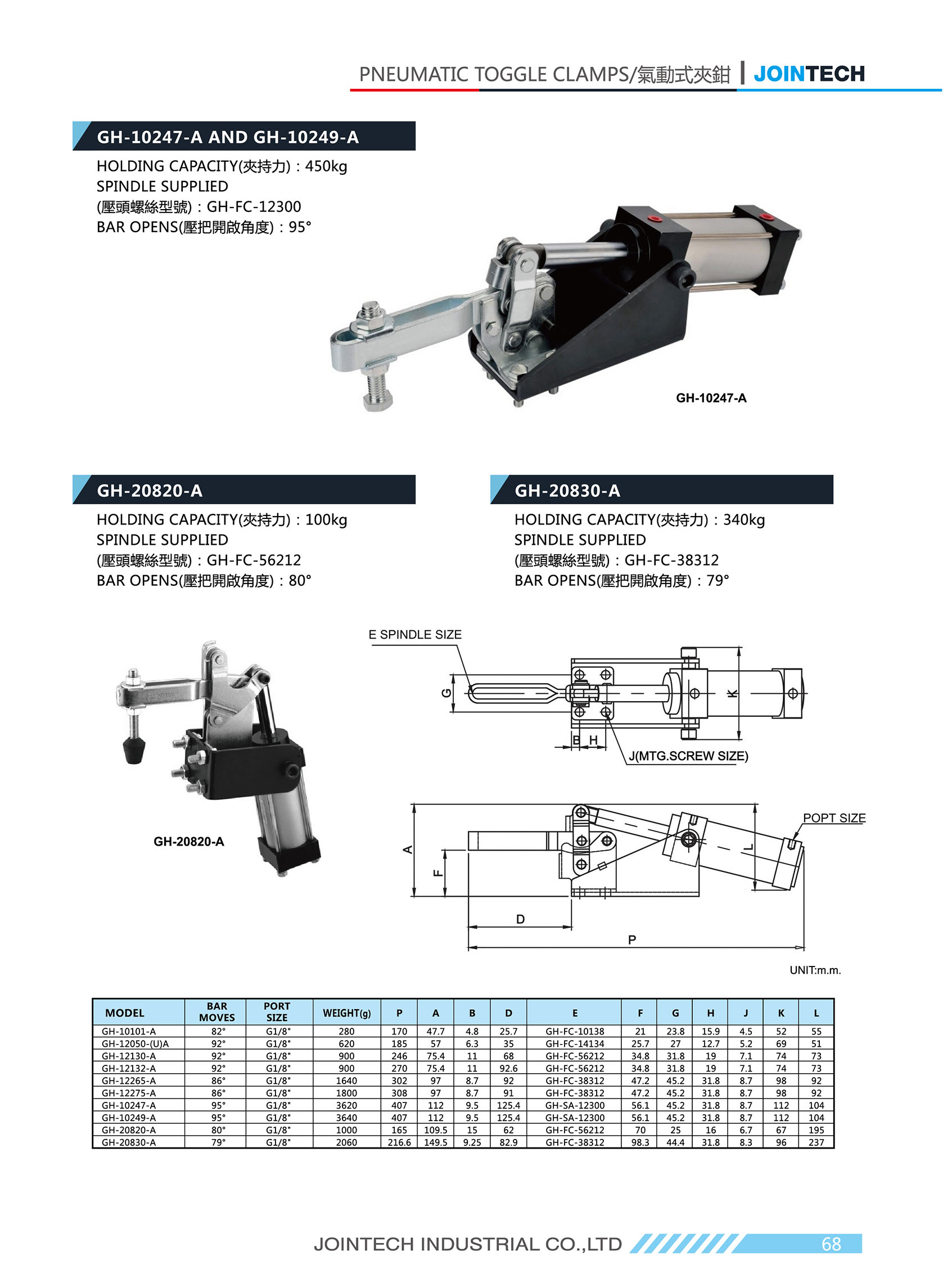

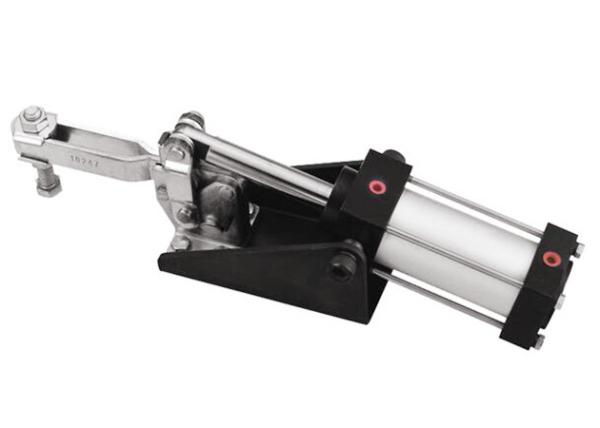

Large Holding Force Pneumatic Vertical Toggle Clamp Hold Down
Action GH-10247-A
Features:
Quick release, big holding capacity, air-driven cylinder toggle
clamp
Supplied with magnetic ring for position sensing
Application:
Welding, machining, checking fixture, assembly fixture,
woodholding, metal holding, workholding clamps
| Bar Opens (º) | Holding Capacity (kg) |
| 95 | 450 |
Railway Vehicle Industry (including subways and light rail
vehicles)
1. Body keel welding is used as fixtures for welding molds.
Main application models:
101-J,10247,22502-B,11421,203-F,12130,702-C,702-D.
2. For welding of the outer metal plate of the car body, manual
toggle clamps are used as fixtures.
Main application models: F clamps.
3. Welding of door panels is used as positioning bolts and fixtures
for welding jigs. Main application models:
11412,12205,10247,225-D,21382,304-C,304-E etc.
4. Welding of seats is used as fixtures for welding fittings. Main
application models: 12265,11421,36020,22235 etc.
5. The production of molded foams for luxury seats is used as
fixtures for foaming molds. Main application models:
702-D,40341,304-H etc.
6. The adhesion of luxury auto interior accessories is used for
adhesion and fixation between interior accessories and auto bodies.
Main application models: F clamps.
Plastic Products Manufacturing Industry
Plastic products are basically divided into two categories: blow
molding and injection molding. At present, no manual toggle clamp
has been found in blow molding, while a large number of manual
toggle clamps have been used for injection molding products. Even
single-machine and single-model "injection molding machines" have
begun to replace the old screw rod with 7-head manual toggle clamps
or corner cylinders for fixing molds.
Notes:
(1) For the single-machine single-model injection molding machine,
manual toggle clamp 7-heads and corner cylinders are widely used to
replace the old screw rod nut fixing molds.
(2) In the loop injection molding production line, the manual
toggle clamp is widely used as open/close locking mechanism for the
upper and lower molds on the molds of the production line.
(3) In the production line of injection molding, the manual toggle
clamp is widely used as a locking mechanism in its mold.
Main application models: 10448,302-F,36060,303-E,40341,431 etc.
Plastic Machinery Manufacturing Industry
Manual toggle clamps are used as fittings for such machines as
plastic crushers, vibration screens, and dryers.
Main application models: 431,101-B,40341 etc.
Printing Machinery Manufacturing Industry
Manual toggle clamps are used as fittings for such machines, such
as stretcher machines (also known as stretching machines), copy
boards (also known as exposure machines), and screen printing
machines. This kind of machinery is not only used for ordinary text
and pattern printing but also more for the manufacture of PCB
boards in the electronics industry. Main application models:
11412,203-F,203-P,12265.
Toy Manufacturing Industry
1. Electronic toy manufacturing industry.
2. Plastic modification manufacturing industry: Generally used in
the production line with injection molding ring. Manual toggle
clamps are used for opening and closing the upper and lower molds
on the molds of its production line.
Main application models: 20235,201-B,302-F etc.
Vertical Toggle Clamp
The vertical toggle handle stands straight when locked. It is
designed with various holding capacities. It can apply a
considerable amount of pressure. Every time you pull the handle
away from the tool, you can lift the securing bar and place an
object under the bar. As the handle moves into vertical alignment,
the pressure is applied. Not only is it safe for a worktable, but
it isalso used to secure wood around machinery.
Basic Mechanics of Toggle Clamp
A toggle clamp is a linkage that can apply a powerful clamping
force. The good news is that it requires little effort to lock or
even unlock. With its ease of use, it’s no wonder why many people
make it a leading option. Typically, this is accomplished thru a
geometric trick. This directs the force into the base. But it does
not oppose the lock or unlock action. You can look at common styles
that demonstrate the trick.
With this geometric trick, you will be fascinated by how a toggle
performs from start to finish. This fantastic feature makes
accomplishing a task easier than you imagine. While toggles have
lots of designs, the operational principle is the same in most
cases.
