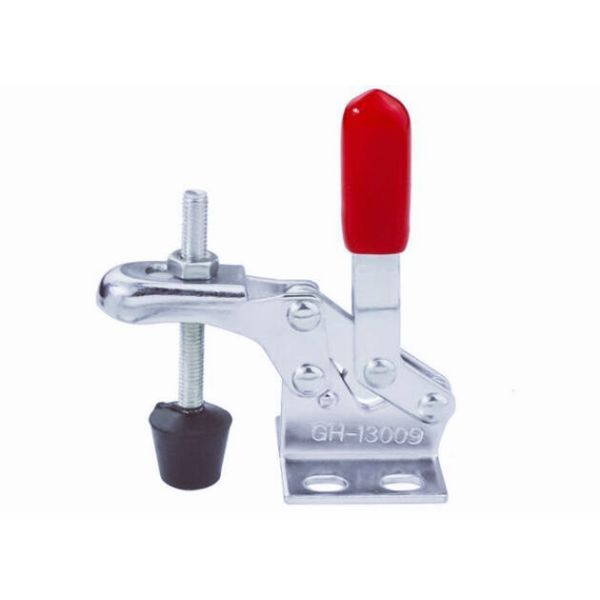

Small Duty Vertical Handle Toggle Clamp Used For Jigs and Drilling
Machine GH-13009
Manual Quick Release Flanged Base Vertical Hold Down Toggle Clamp
GH-13009
Quick release, small holding capacity
Application:
Welding, machining, checking fixture, assembly fixture,
woodholding, metal holding, workholding clamps
| Weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
| 40 | 30 | 80 | 88 | GH-FC-044207 |
Automobile Industry
1. Welding of various car seats is used as positioning bolts and
fixtures for welding fittings. Main application models:
11412,12265,102-B,36020,303-E etc.
2. The production of molded foams for luxury car seats is used as
fixtures for foaming molds.
Main application models: 702-D,40341,304-H, etc.
3. The production of various automobile (motorcycle) mufflers is
used as fixtures for welding jigs.
Main application models:
11412,10247,12305,22175,25382,36020,303-E,305-H etc.
4. The production of various automobile (motorcycle) carburetors is
used as fixtures for jigs and fixtures for drilling machines.
Main application models: 201-B,21382,21383,21384 etc.
5. The production of various automobile (motorcycle) wiring harness
and electrical appliances is used as fixtures for testing jigs.
Some of them are also used for assembling fixtures during assembly.
Main application models: 201,201-A,201-B,101-A etc.
Motorcycle Industry
1. Welding of car frames is used as positioning bolts and fixtures
for welding molds.
Main application models:
12265,11412,11421,101-B,12205,10247,22175,25382,36020,304-E,304-H,303-E,36060,702-C,30509
etc.
2. Steering column: welding of front and rear forks and guard
frames is used as positioning bolts and fixtures for welding jigs.
Main application models: 11421,11412,22175,36020,302-F,303-E etc.
3. The production of engine cylinder heads and cylinder blocks is
used as fixtures for drilling machines.
Main application models: 25383,25382,12265-A,12132-A etc.
4. Carburetors, mufflers and wire harnesses are all used in the
same way as in the "automobile industry."
Note: Manual toggle clamps can be used for all products or parts
that are similar to the above three points regarding the
manufacture of materials and production methods and have the
characteristics of continuous mass production.
Vertical Toggle Clamp
The vertical toggle handle stands straight when locked. It is
designed with various holding capacities. It can apply a
considerable amount of pressure. Every time you pull the handle
away from the tool, you can lift the securing bar and place an
object under the bar. As the handle moves into vertical alignment,
the pressure is applied. Not only is it safe for a worktable, but
it isalso used to secure wood around machinery.
| Q'TY PCS | 1-100 | 101-500 | 501-1000 | 1001-2000 | 2001-5000 | 5000+ |
| EST.DAYS | 1-3 | 3-5 | 5-7 | 7-15 | 15-25 | 25-35 |
| Brand | JOINTECH |

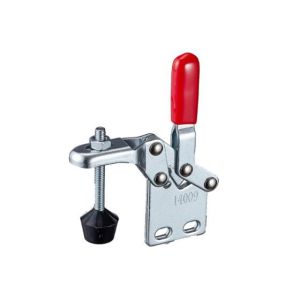

| Model | GH-13009 / 14009 |
| Bar Type | Fixed Bar |
| Base Type | Flanged / Straight |
| Handle Type | Straight |
| Clamping Type | Vertical |
| Operation Type | Hold Down Quick Clamping |
| Standard / Non | Standard |
| Holding Force (LBS) | 60 |
| Spindle Standard | mm/inch |
| Material | Metal; SUS#201; SUS#304; SUS#316; |
| Surface Treatment | Zinc Plated; Nickled Plated; Tumbled; Polished;Black Oxide; |
| Finish | Silver; Natural; Red / Blue / Black / Orange Dipped Grip; |
| Design | OEM & ODM |
| Price Term | Ex-works; FOB Shenzhen; CIF; CFR; DDU; DDP; DA; DP; |
| Payment Term | T/T; L/C; Western Union; Visa; MoneyGram; Paypal; |
| Sample Request | F.O.C. / $1USD |
| Stock Status: (PCS) | 5000 |
| Package Method | PE Bag; Inner and Master Carton; Each Master Carton is Less than
50lbs; |
| Pallet | Wooden / Fumigation / Plywood / Plastic / Aluminum Alloy; |
| Shipment Method | Sea / Train / Truck / UPS / DHL / FEDEX / TNT / EMS |
