Good Hand Heavy Duty Vertical Handle Toggle Clamp For Welding Jigs
/ GH-13002-B

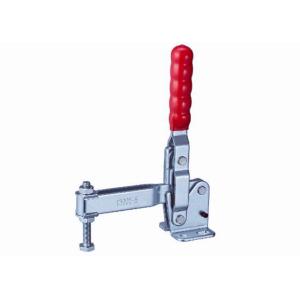

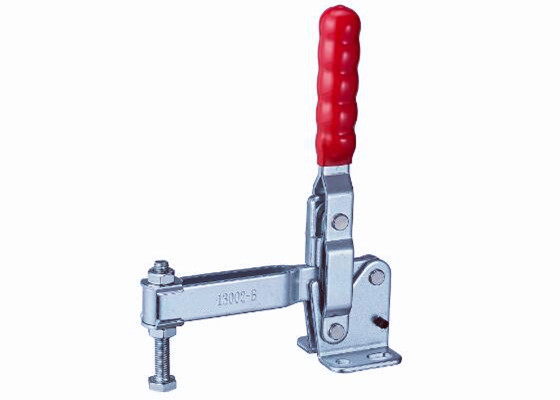

Manual Quick Release Vertical Hold Down Toggle Clamp GH-13002-B
Features:
Quick release, small holding capacity
Application:
Welding, machining, checking fixture, assembly fixture,
woodholding, metal holding, workholding clamps
| Weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
| 380 | 250 | 106 | 67 | GH-SA-086512 |
Automobile Industry
1. Stamping of all kinds of vehicle frames, accessories (small
sheet metal parts) and sheet metal door panel parts is used as
positioning bolts and fixtures for stamping parts inspecting jigs.
Main application models: 13002-B,12130,12135,11412,302-F,36020 etc.
2. Welding of various automobile roof and side windows is used as
fixtures for welding fittings. Main application models:
11412,203-F,21502-B.
3. Welding and welding inspection of various door panels are used
as positioning bolts and fixtures for welding and testing molds.
Main application models:
702-C,702-D,101-E,10247,12130,12135,12137,304-E etc.
4. Welding of various vehicle frames and accessories (small sheet
metal parts) is used as positioning bolts and fixtures for welding
jigs.
Main application models:
702-C,702-D,702-K,101-J,10247,12265,304-E,304-H,303-E etc.
5. Welding inspection of various vehicle frames and accessories
(small sheet metal parts) is used as positioning bolts and fixtures
for inspecting jigs. Main application models:
13002-B,12135,12137,304-C,302-F etc.
Aircraft Manufacturing Industry
1. In the production of body keels, the manual toggle clamp is used
in "welding molds". The main types of use vary from factory to
factory.
2. For the riveting of outer metal sheets and gluing of inner
accessories, manual toggle clamps are used as a fixture.
Main application models: F clamps.
Machinery Manufacturing Industry
For the production of modular machine tools, machining centers and
other machine tool equipment on its workbench or in the conversion
mechanism, manual toggle clamps can be used as fixtures and
change-over gears
Main application models: Push Pull Toggle Clamps.
Machining Industry
Manual toggle clamps can be used to replace the old stationary
fixture on the workbench of the milling machine, slotting machine,
drilling machine, boring machine, modular machine tool, machining
center, CNC (various) machine tools, and other mechanical
processing equipment process mechanical parts. Main application
models: Push-Pull Toggle Clamps.,Heavy Duty Weldable Toggle Clamps.
Other Industries
In addition to the above-mentioned industries, manual toggle clamps
have been widely used in military industry, stylistic industry,
office supplies manufacturing industry, medical equipment, and
equipment manufacturing industry, drinking machinery and supplies
manufacturing industry, power equipment manufacturing industry,
bridge, highway equipment, and facilities manufacturing industry,
tooling manufacturing industry, environmental protection,
firefighting equipment, and facilities manufacturing industry,
communication equipment and equipment manufacturing industry,
decoration, installation industry, and high-tech fields.
| Q'TY PCS | 1-100 | 101-500 | 501-1000 | 1001-2000 | 2001-5000 | 5000+ |
| EST.DAYS | 1 | 3 | 7 | 15 | 25 | 35 |
| Brand | JOINTECH |
| Model | GH-11002-B / 12002-B / 13002-B |
| Bar Type | U Bar |
| Base Type | Flanged |
| Handle Type | Straight / T-Handle |
| Clamping Type | Vertical |
| Operation Type | Hold Down Quick Clamping |
| Standard / Non | Standard |
| Holding Force (LBS) | 500 |
| Spindle Standard | mm/inch |
| Material | Metal; SUS#201; SUS#304; SUS#316; |
| Surface Treatment | Zinc Plated; Nickle Plated; Black Oxide; Tumbled; Polished; |
| Finish | Silver; Natural; Red / Blue / Black / Orange Dipped Grip; |
| Design | OEM & ODM |
| Price Term | Ex-works; FOB Shenzhen; CIF; CFR; DDU; DDP; DA; DP; |
| Payment Term | T/T; L/C; Western Union; Visa; MoneyGram; Paypal; |
| Sample Request | F.O.C. / $3.5USD |
| Stock Status: (PCS) | 1500 |
| Package Method | PE Bag; Inner and Master Carton; Each Master Carton is Less than
50lbs; |
| Pallet | Wooden / Fumigation / Plywood / Plastic / Aluminum Alloy; |
| Shipment Method | Sea / Train / Truck / UPS / DHL / FEDEX / TNT / EMS |
