Side Mount 500lbs Capacity Metal Holding Vertical Handle Toggle
Clamp GH-12130-SM

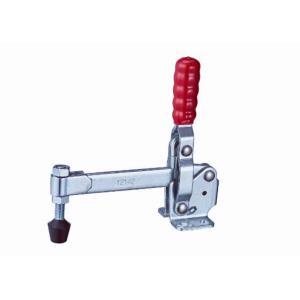

Manual Quick Release Vertical Hold Down Toggle Clamp GH-12130-SM
Features:
Quick release, small holding capacity
Application:
Welding, machining, checking fixture, assembly fixture,
woodholding, metal holding, workholding clamps
| Weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
| 394 | 226 | 99 | 59 | GH-FC-56212 |
Automobile Industry
1. Welding of various vehicle frames and accessories (small sheet
metal parts) is used as positioning bolts and fixtures for welding
jigs.
Main application models:
702-C,702-D,702-K,101-J,10247,12265,304-E,304-H,303-E etc.
2. Welding inspection of various vehicle frames and accessories
(small sheet metal parts) is used as positioning bolts and fixtures
for inspecting jigs. Main application
models:12130HB,12135,12137,304-C,302-F etc.
3. Stamping of all kinds of vehicle frames, accessories (small
sheet metal parts) and sheet metal door panel parts is used as
positioning bolts and fixtures for stamping parts inspecting jigs.
Main application models: 12130,12135,11412,302-F,36020 etc.
4. Welding of various automobile roof and side windows is used as
fixtures for welding fittings. Main application models:
11412,203-F,21502-B.
5. Welding and welding inspection of various door panels are used as
positioning bolts and fixtures for welding and testing molds.
Main application models:
702-C,702-D,101-E,10247,12130,12135,12137,304-E etc.
Furniture Manufacturing Industry
1. Metal furniture - furniture made of metal shapes. Manual toggle
clamps are used for fixtures on "welding jigs."
Main application models: 11412,203-F,225-D,302-F,304,305 series
etc.
2. Solid wood furniture - that is, furniture made of logs, quick
fixtures are used in woodworking machines, such as "profiling
woodworking milling machines" and "woodworking chamfering
machines". Main application models: 200-W-220-WLH
series,21385,225-D etc.
3. For carved furniture, such as "mahogany furniture," manual
toggle clamps are used as fixtures on woodworking carving machines.
Main application models: 12130HB,220-WLH,302-D etc.
4. Oriented strand lumber production - that is, the log is
processed into the oriented strand lumber, which is used as a
fixture on the "board-sawing machine." Main application models: F
clamps.
Note: Plate furniture - furniture made of various plywood, with one
or two manual toggle clamps occasionally used.
Note: All products or parts can be used when similar to the above
four points regarding the manufacture of materials and production
methods (e.g., fitness equipment such as treadmills, musical
instruments and other instruments made of solid wood, other carved
products, flooring made of oriented strand lumber) and having the
characteristics of continuous mass production.
| Q'TY PCS | 1-100 | 101-500 | 501-1000 | 1001-2000 | 2001-5000 | 5000+ |
| EST.DAYS | 1-3 | 3-5 | 5-7 | 7-15 | 15-25 | 25-35 |
| Brand | JOINTECH |
| Model | GH-12130-SM |
| Bar Type | U Bar |
| Base Type | Flanged Side Mount |
| Clamping Type | Vertical |
| Operation Type | Hold Down Quick Clamping |
| Holding Force (LBS) | 450 |
| Spindle Standard | mm/inch |
| Material | Metal; SUS#201; SUS#304; SUS#316; |
| Surface Treatment | Galvanized |
| Finish | Silver; Natural; Red / Blue / Black / Orange Dipped Grip; |
| Design | OEM & ODM |
| Price Term | Ex-works; FOB Shenzhen; CIF; CFR; DDU; DDP; DA; DP; |
| Sample Request | F.O.C. / $3.5USD |
| Stock Status: (PCS) | 250 |
| Package Method | PE Bag; Inner and Master Carton; Each Master Carton is Less than
50lbs; |
| Pallet | Plastic |
| Shipment Method | Sea / Train / Truck / UPS / DHL / FEDEX / TNT / EMS |
