Stainless Steel#316 Vertical Handle Toggle Clamp Use For Welding
Jigs GH-12130-SS

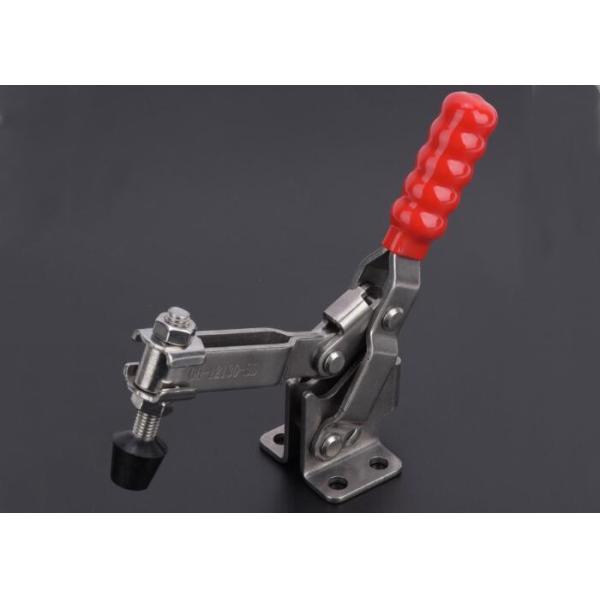

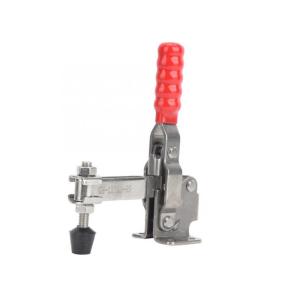

Manual Quick Release Vertical Hold Down Toggle Clamp GH-12130-SS
Features:
Quick release, small holding capacity
Application:
Welding, machining, checking fixture, assembly fixture,
woodholding, metal holding, workholding clamps
| Weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
| 355 | 227 | 100 | 60 | GH-FC-56212 |
Automobile Industry
1. Welding of various automobile roof and side windows is used as
fixtures for welding fittings. Main application models:
11412,203-F,21502-B.
2. Welding and welding inspection of various door panels are used
as positioning bolts and fixtures for welding and testing molds.
Main application models:
702-C,702-D,101-E,10247,12130,12135,12137,304-E etc.
3. Stamping of all kinds of vehicle frames, accessories (small
sheet metal parts) and sheet metal door panel parts is used as
positioning bolts and fixtures for stamping parts inspecting jigs.
Main application models: 12130,12135,11412,302-F,36020 etc.
4. Welding inspection of various vehicle frames and accessories
(small sheet metal parts) is used as positioning bolts and fixtures
for inspecting jigs. Main application
models:12130,12135,12137,304-C,302-F etc.
5. Welding of various vehicle frames and accessories (small sheet
metal parts) is used as positioning bolts and fixtures for welding
jigs.
Main application models:
702-C,702-D,702-K,101-J,10247,12265,304-E,304-H,303-E etc.
Electronics Industry
1. The manual toggle clamp is used as a component on the
"mechanical winding machine" for fixing the core frame.
Main application models: 12130,12130-A etc.
2. One of the production equipment for PCB boards, jet-soldering
machine, with manual toggle clamp on the conveyor chain fixture.
Main application models: 101-A,201,20300,21800 etc.
3. Electrostatic spraying equipment and manual toggle clamps serve
as accessories, mainly for barrel cover opening and closing. (In
the spraying production line, a manual toggle clamp is sometimes
used to fix the processed object).
Main application models: 40323,431,40341,451 etc.
4. The metal shell of various electrical appliances, such as water
heaters, microwave ovens, air conditioners, refrigerators,
cabinets, and chassis is quickly clamped on the "welding molds" as
a fixture. Main application models:
11412,203-F,225-D,21502-B,102-B,101-D
5. Manual toggle clamps are used in the assembly line and testing
process of small motors and electric tools.
Main application models:
12130,12050,12050-U,101-A,102-B,301-A,304-C etc.
| Q'TY PCS | 1-100 | 101-500 | 501-1000 | 1001-2000 | 2001-5000 | 5000+ |
| EST.DAYS | 1 | 3 | 7 | 15 | 25 | 35 |
| Brand | JOINTECH |
| Model | GH-12130-SS / 12131 / 12133 / 12138 / 12141 / 12142 / 12143 / 12147 |
| Bar Type | U Bar |
| Base Type | Flanged |
| Handle Type | Straight |
| Clamping Type | Vertical |
| Operation Type | Hold Down Quick Clamping |
| Standard / Non | Standard |
| Holding Force (LBS) | 178 |
| Spindle Standard | mm/inch |
| Material | SUS#201; SUS#304; SUS#316; |
| Surface Treatment | Tumbled; Polished; |
| Design | OEM & ODM |
| Price Term | Ex-works; FOB Shenzhen; CIF; CFR; DDU; DDP; DA; DP; |
| Payment Term | T/T; L/C; Western Union; Visa; MoneyGram; Paypal; |
| Sample Request | F.O.C. / $2USD |
| Stock Status: (PCS) | 1000 |
| Package Method | PE Bag; Inner and Master Carton; Each Master Carton is Less than
50lbs; |
| Pallet | Wooden / Fumigation / Plywood / Plastic / Aluminum Alloy; |
| Shipment Method | Sea / Train / Truck / UPS / DHL / FEDEX / TNT / EMS |
