Manual Quick Release Plunger Stroke Push Pull Toggle Clamp Straight
Line Action GH-30607M
Quick Release Push and Pull Type Hold Down Handle Toggle Clamp
GH-30607M
Features:
Quick release, big holding capacity
Application:
Welding, machining, checking fixture, assembly fixture,
woodholding, metal holding, workholding clamps

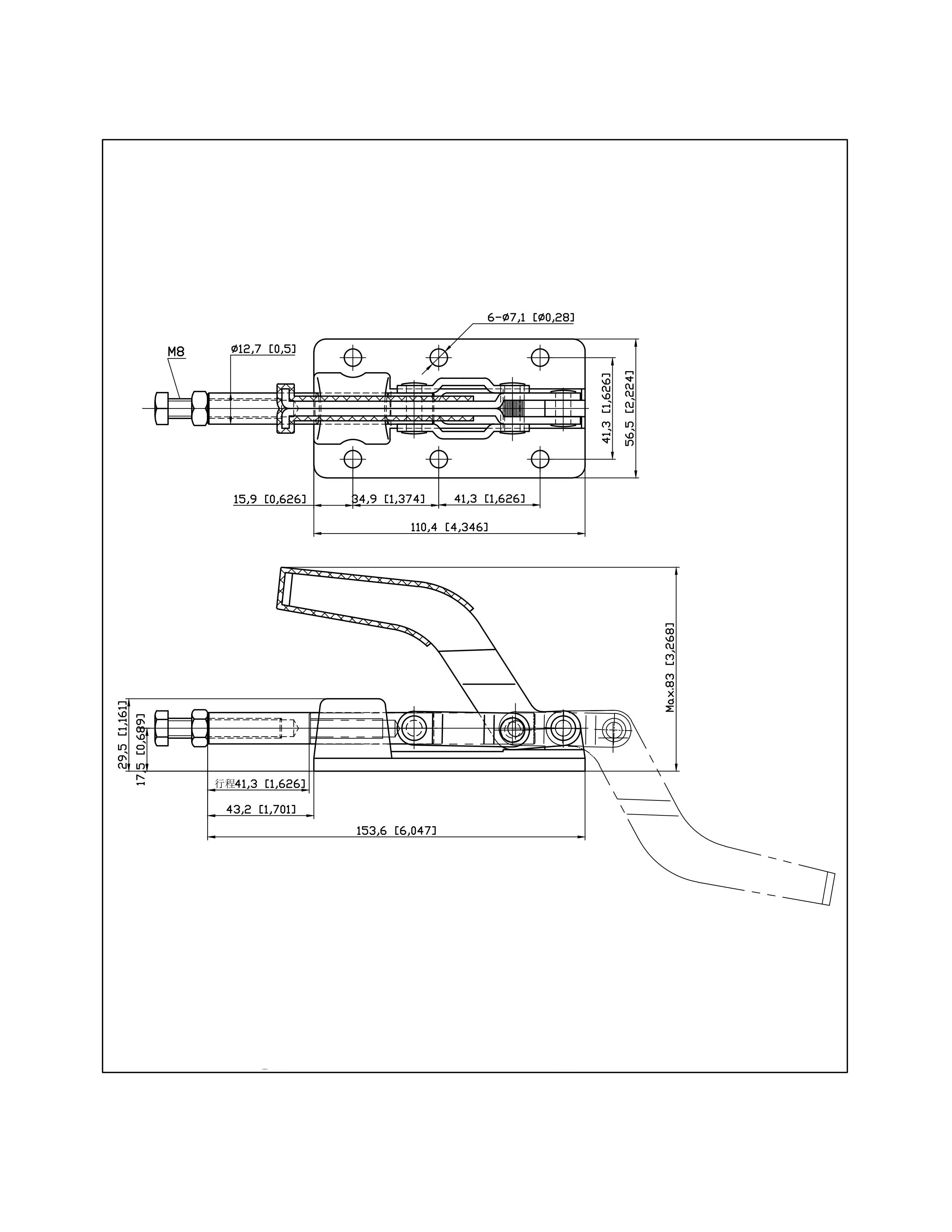

| Weight (g) | Holding Capacity (kg) | Plunger Strock (mm) | Handle Opens (º) | Spindle Supplied |
| 700 | 318 | 41.3 | 180 | GH-SA-085012 |
Automobile Industry
1. Production of various automobile steering wheels:
1) used as fixtures for welding jigs. Main application models:
201,201-A,201-B,101-B.
2) used as end caps for foaming molds. Main application models:
304,305 series.
2. Production of various automobile interior accessories:
1) Dashboards, etc. (using PP, ABS materials); used as clamping
fixtures for "casting molds";
Main application models: 431,40341.
2) Dashboards, etc. (using PU materials); used as clamping fixtures
for "foaming molds"; and
Main application models: 40341,10448,20448,702-D etc.
3) Inspection of interior accessories is used as positioning and
locking fixtures for testing jigs;
Main application models: 30607, 101-D,12130,12135,302-F etc.
4) Lining (with leather, wool cloth materials) is used as fixing
fixtures for fixing upper and lower molds on the press.
Main application models: 40370,40380.
3. The rivets and welds on the chassis of small cars such as
minibuses, jeeps and sedans are used as positioning and locking
fixtures for riveting and welding jigs.
Main application models: 702-C,702-D,702-K,303-E,304-H etc.
4. Welding and welding inspection of various door panels are used
as positioning bolts and fixtures for welding and testing molds.
Main application models:
702-C,702-D,101-E,10247,12130,12135,12137,304-E etc.
5. Welding of various automobile roof and side windows is used as
fixtures for welding fittings.
Main application models: 30607, 11412,203-F,21502-B etc.
6. Welding of various car seats is used as positioning bolts and
fixtures for welding fittings.
Main application models: 11412,12265,102-B,36020,303-E etc.
7. The production of molded foams for luxury car seats is used as
fixtures for foaming molds.
Main application models: 702-D,40341,304-H, etc.
8. The production of various automobile (motorcycle) mufflers is
used as fixtures for welding jigs.
Main application models:
11412,10247,12305,22175,25382,36020,303-E,305-H etc.
9. The production of various automobile (motorcycle) wiring harness
and electrical appliances is used as fixtures for testing jigs.
Some of them are also used for assembling fixtures during assembly.
Main application models: 201,201-A,201-B,101-A etc.
Furniture Manufacturing Industry
1. Metal furniture - furniture made of metal shapes. Manual toggle
clamps are used for fixtures on "welding jigs."
Main application models: 11412,203-F,225-D,302-F,304,305 series
etc.
2. Solid wood furniture - that is, furniture made of logs, quick
fixtures are used in woodworking machines, such as "profiling
woodworking milling machines" and "woodworking chamfering
machines".
Main application models: 200-W-220-WLH series,21385,225-D etc.
3. For carved furniture, such as "mahogany furniture," manual
toggle clamps are used as fixtures on woodworking carving machines.
Main application models: 220-WLH,302-D etc.
4. Oriented strand lumber production - that is, the log is
processed into the oriented strand lumber, which is used as a
fixture on the "board-sawing machine."
Main application models: F clamps.
Note: Plate furniture - furniture made of various plywood, with one
or two manual toggle clamps occasionally used.
Note: All products or parts can be used when similar to the above
four points regarding the manufacture of materials and production
methods (e.g., fitness equipment such as treadmills, musical
instruments and other instruments made of solid wood, other carved
products, flooring made of oriented strand lumber) and having the
characteristics of continuous mass production.
| Q'TY PCS | 1-100 | 101-500 | 501-1000 | 1001-2000 | 2001-5000 | 5000+ |
| EST.DAYS | 1-3 | 3-5 | 5-7 | 7-15 | 15-25 | 25-35 |
