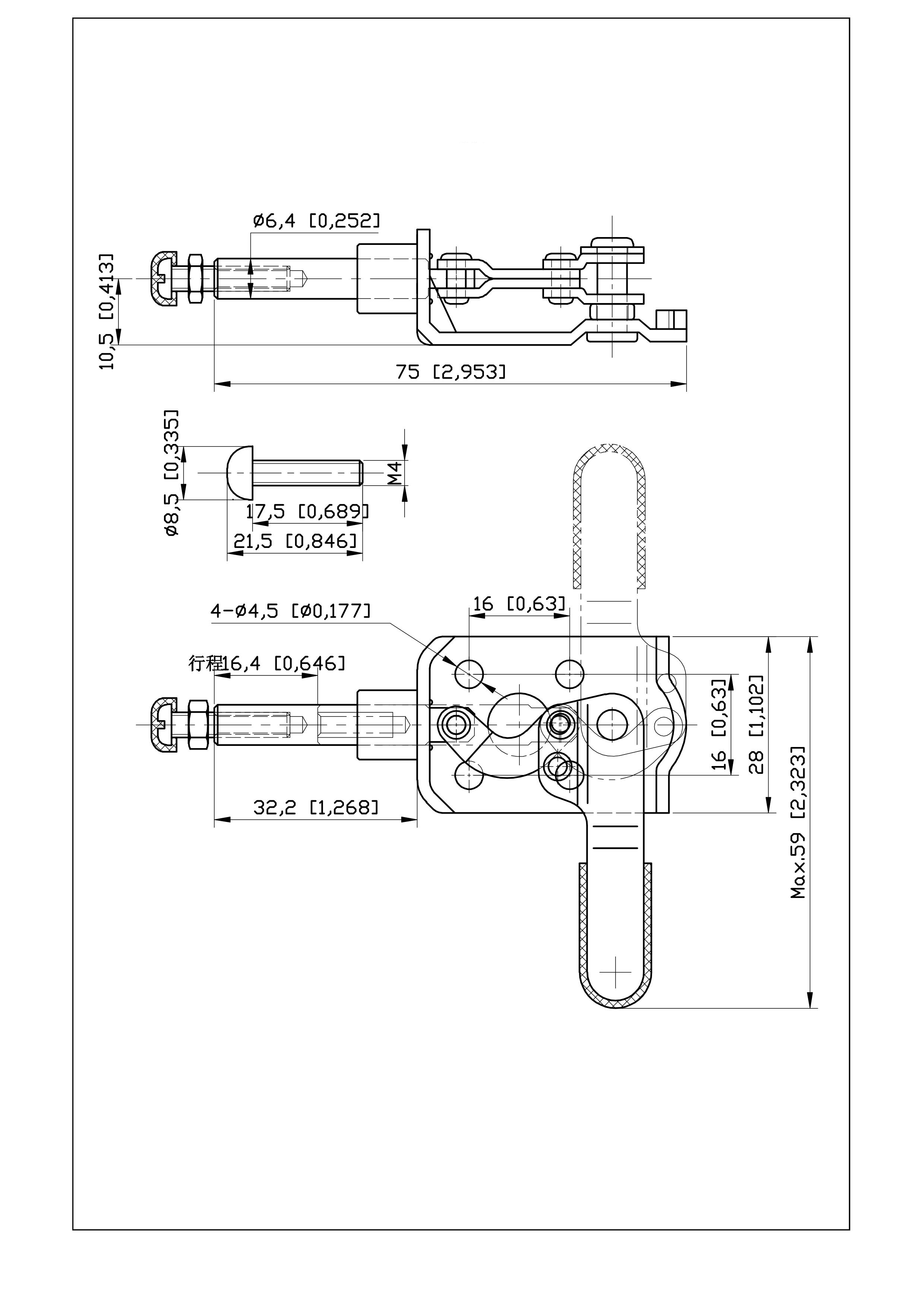

Light Duty Push Pull Toggle Clamp Straight Line Action For
Inspecting Jigs 301CR
Quick Release Push and Pull Type Hold Down Handle Toggle Clamp
GH-301-CR
Features:
Quick release, small holding capacity
Application:
Welding, machining, checking fixture, assembly fixture,
woodholding, metal holding, workholding clamps
| Weight (g) | Holding Capacity (kg) | Plunger Strock (mm) | Handle Opens (º) | Spindle Supplied |
| 56 | 40 | 16.4 | 180 | GH-FC-042007 |
Automobile Industry
1. Welding of various vehicle frames and accessories (small sheet
metal parts) is used as positioning bolts and fixtures for welding
jigs.
Main application models:
702-C,702-D,702-K,101-J,10247,12265,304-E,304-H,303-E etc.
2. Welding inspection of various vehicle frames and accessories
(small sheet metal parts) is used as positioning bolts and fixtures
for inspecting jigs.
Main application models: 12135,12137,304-C,302-F etc.
3. Stamping of all kinds of vehicle frames, accessories (small
sheet metal parts) and sheet metal door panel parts is used as
positioning bolts and fixtures for stamping parts inspecting jigs.
Main application models: 301-CR, 12130,12135,11412,302-F,36020 etc.
4. Welding and welding inspection of various door panels are used
as positioning bolts and fixtures for welding and testing molds.
Main application models:
702-C,702-D,101-E,10247,12130,12135,12137,304-E etc.
5. Welding of various automobile roof and side windows is used as
fixtures for welding fittings.
Main application models: 11412,203-F,21502-B etc.
6. Welding of various car seats is used as positioning bolts and
fixtures for welding fittings.
Main application models: 11412,12265,102-B,36020,303-E etc.
7. The production of molded foams for luxury car seats is used as
fixtures for foaming molds.
Main application models: 702-D,40341,304-H, etc.
8. The production of various automobile (motorcycle) mufflers is
used as fixtures for welding jigs.
Main application models:
11412,10247,12305,22175,25382,36020,303-E,305-H etc.
9. The production of various automobile (motorcycle) carburetors is
used as fixtures for jigs and fixtures for drilling machines.
Main application models: 201-B,21382,21383,21384 etc.
10. The production of various automobile (motorcycle) wiring
harness and electrical appliances is used as fixtures for testing
jigs. Some of them are also used for assembling fixtures during
assembly.
Main application models: 301-CR, 201,201-A,201-B,101-A etc.
11. Production of various automobile steering wheels:
1) used as fixtures for welding jigs. Main application models:
201,201-A,201-B,101-B.
2) used as end caps for foaming molds. Main application models:
304,305 series.
12. Production of various automobile interior accessories:
1) Dashboards, etc. (using PP, ABS materials); used as clamping
fixtures for "casting molds";
Main application models: 431,40341.
2) Dashboards, etc. (using PU materials); used as clamping fixtures
for "foaming molds"; and
Main application models: 40341,10448,20448,702-D etc.
3) Inspection of interior accessories is used as positioning and
locking fixtures for testing jigs;
Main application models: 101-D,12130,12135,302-F etc.
4) Lining (with leather, wool cloth materials) is used as fixing
fixtures for fixing upper and lower molds on the press.
Main application models: 40370,40380.
13. The rivets and welds on the chassis of small cars such as
minibuses, jeeps and sedans are used as positioning and locking
fixtures for riveting and welding jigs.
Main application models: 702-C,702-D,702-K,303-E,304-H etc.
14. In the production of partially refitted auto bodies, the manual
toggle clamp is used in the assembly and welding of auto bodies.
Main application models: F clamps and Toggle Pliers.
15. Manual toggle clamps are used for local spot welding during
assembly in small and medium sized automobile plants.
Main application models: Toggle Pliers.
16. Production of luxurious minibus and bus bodies:
1) Body keel welding is used as fixtures for welding jigs.
Main application models: 702-D,10247,12265,11412 etc.
2) For welding of the outer metal plate of the car body, manual
toggle clamps are used as fixtures.
Main application models: F clamps and Toggle Pliers.
3) For the adhesion of super-luxury bus and minibus interior
accessories, manual toggle clamps are used for adhesion and
fixation between interior accessories and auto bodies.
Main application models: F clamps.
Motorcycle Industry
1. Welding of car frames is used as positioning bolts and fixtures
for welding molds.
Main application models:
12265,11412,11421,101-B,12205,10247,22175,25382,36020,304-E,304-H,303-E,36060,702-C,30509
etc.
2. Steering column: welding of front and rear forks and guard
frames is used as positioning bolts and fixtures for welding jigs.
Main application models: 11421,11412,22175,36020,302-F,303-E etc.
3. The production of engine cylinder heads and cylinder blocks is
used as fixtures for drilling machines.
Main application models: 25383,25382,12265-A,12132-A etc.
4. Carburetors, mufflers and wire harnesses are all used in the
same way as in the "automobile industry."
Note: Manual toggle clamps can be used for all products or parts
that are similar to the above points regarding the manufacture of
materials and production methods and have the characteristics of
continuous mass production.
Basic Mechanics of Toggle Clamp
A toggle clamp is a linkage that can apply a powerful clamping
force. The good news is that it requires little effort to lock or
even unlock. With its ease of use, it’s no wonder why many people
make it a leading option. Typically, this is accomplished thru a
geometric trick. This directs the force into the base. But it does
not oppose the lock or unlock action. You can look at common styles
that demonstrate the trick.
With this geometric trick, you will be fascinated by how a toggle
performs from start to finish. This fantastic feature makes
accomplishing a task easier than you imagine. While toggles have
lots of designs, the operational principle is the same in most
cases.
