300KG Capacity Quick Release Push Pull Toggle Clamp Used as Metal
Fixtures GH-36060

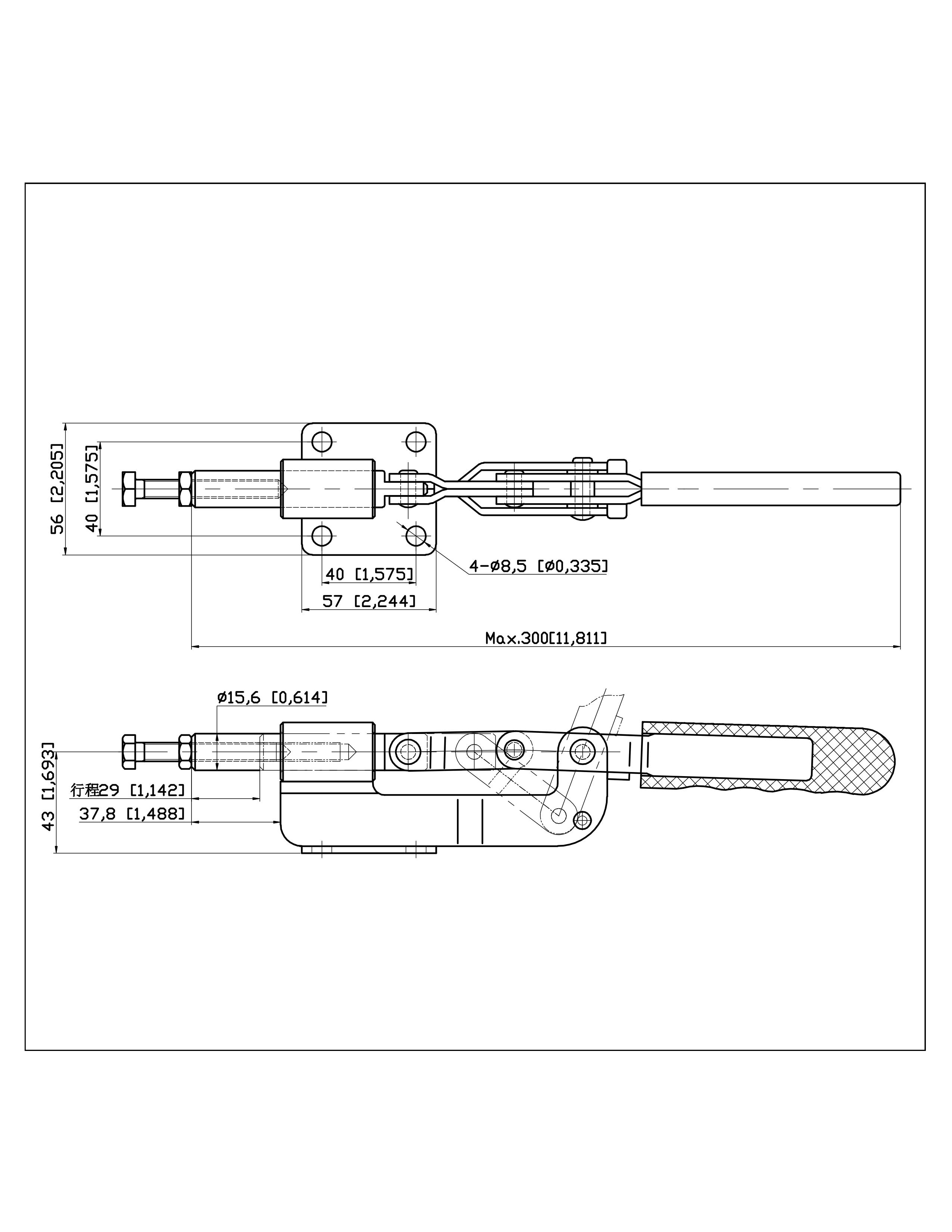

Quick Release Push and Pull Type Hold Down Handle Toggle Clamp GH-36060
Features:
Quick release, big holding capacity
Application:
Welding, machining, checking fixture, assembly fixture,
woodholding, metal holding, workholding clamps
| Weight (g) | Holding Capacity (kg) | Plunger Strock (mm) | Handle Opens (º) | Spindle Supplied |
| 615 | 300 | 28 | 76 | GH-SA-083012 |
Electronics Industry
1. Electronic toys, game consoles and IC cards.
2. The production of weighing sensors uses manual toggle clamps,
with process locations unknown.
3. In the production of electronic wiring, manual toggle clamps are
used for embedded wires.
Main application models: 30600HL,30600PR,31200HL,31200PR.
4. For the production of electronic components such as filters and
amplifiers, manual toggle clamps are used on test equipment and
test jigs.
Main application models:
101-A,102-B,11401,12050-U,201-B,20752-B,22100 etc.
5. A manual toggle clamp is used as fittings in electronic
production equipment, such as crest welders, reflow soldering
machines, DDC machines, reflow ovens, stretching machines, and
screen printing machines.
Main application models: 101-A,102-B,40341,80325 etc.
6. Manual toggle clamps are used in the assembly line and testing
process of small motors and electric tools.
Main application models: 12050,12050-U,101-A,102-B,301-A,304-C etc.
7. The metal shell of various electrical appliances, such as water
heaters, microwave ovens, air conditioners, refrigerators,
cabinets, and chassis is quickly clamped on the "welding molds" as
a fixture.
Main application models: 11412,203-F,225-D,21502-B,102-B,101-D
8. Electrostatic spraying equipment and manual toggle clamps serve
as accessories, mainly for barrel cover opening and closing. (In
the spraying production line, a manual toggle clamp is sometimes
used to fix the processed object).
Main application models: 40323,431,40341,451 etc.
9. One of the production equipment for PCB boards, jet-soldering
machine, with manual toggle clamp on the conveyor chain fixture.
Main application models: 101-A,201,20300,21800 etc.
10. The manual toggle clamp is used as a component on the
"mechanical winding machine" for fixing the core frame.
Main application models: 12130,12130-A etc.
Logistics Equipment Manufacturing Industry
1. For the welding of metal parts such as fork trucks and cabs,
manual toggle clamps are used as fixtures for "welding jigs."
Main application models: 11412,10247,12265 etc.
2. For the welding of metal parts of manual movers, platform trucks
and stacking trucks, manual toggle clamps are used as fixtures for
"welding jigs." Main application models:
11412,203-F,225-D,101-H,101-E etc.
3. For the iron wire welding of cages and cage carriers, manual
toggle clamps are used as fixtures and positioning bolts for
"welding fixtures of the iron wire. Main application models:
36060,203-F,201,302-F,101-A,304-C etc.
4. For the welding of racks, manual toggle clamps are used as
positioning bolts and fixtures for forming and assembling "welding
molds."
Main application models: 11412,225-D,203-F,302-F etc.
5. For the welding of metal parts of tool cabinets and mobile
cabinets, manual toggle clamps are used as fixtures for "welding
molds."
Main application models: 11412,225-D,203-F etc.
6. Barcode readers, scanners, printers.
Note: Manual toggle clamps can be used for all products or parts
that are similar to the above points regarding the manufacture of
materials and production methods and have the characteristics of
continuous mass production.
| Q'TY PCS | 1-100 | 101-500 | 501-1000 | 1001-2000 | 2001-5000 | 5000+ |
| EST.DAYS | 1-3 | 3-5 | 5-7 | 7-15 | 15-25 | 25-35 |
