Clamptek 50kg 100lbs Small Duty Push Pull Toggle Clamp Straight
Line Action GH-36070

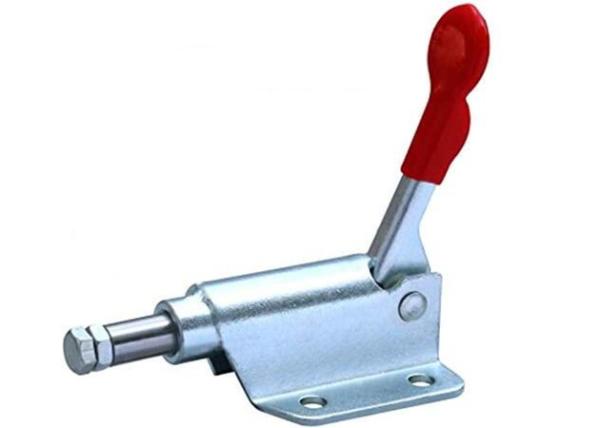

Quick Release Push and Pull Type Hold Down Handle Toggle Clamp GH-36070
Features:
Quick release, small holding capacity
Application:
Welding, machining, checking fixture, assembly fixture,
woodholding, metal holding, workholding clamps
| weight (g) | Holding Capacity (kg) | Plunger Strock (mm) | Handle Opens (º) | Spindle Supplied |
| 100 | 50 | 10 | 66 | GH-SA-051508 |
Electronics Industry
1. Electronic toys, game consoles and IC cards.
2. The production of weighing sensors uses manual toggle clamps,
with process locations unknown.
3. In the production of electronic wiring, manual toggle clamps are
used for embedded wires.
Main application models: 30600HL,30600PR,31200HL,31200PR.
4. For the production of electronic components such as filters and
amplifiers, manual toggle clamps are used on test equipment and
test jigs.
Main application models: 36070,
101-A,102-B,11401,12050-U,201-B,20752-B,22100 etc.
5. A manual toggle clamp is used as fittings in electronic
production equipment, such as crest welders, reflow soldering
machines, DDC machines, reflow ovens, stretching machines, and
screen printing machines.
Main application models: 101-A,102-B,40341,80325 etc.
6. Manual toggle clamps are used in the assembly line and testing
process of small motors and electric tools.
Main application models: 12050,12050-U,101-A,102-B,301-A,304-C etc.
7. The metal shell of various electrical appliances, such as water
heaters, microwave ovens, air conditioners, refrigerators,
cabinets, and chassis is quickly clamped on the "welding molds" as
a fixture.
Main application models: 11412,203-F,225-D,21502-B,102-B,101-D
8. Electrostatic spraying equipment and manual toggle clamps serve
as accessories, mainly for barrel cover opening and closing. (In
the spraying production line, a manual toggle clamp is sometimes
used to fix the processed object).
Main application models: 40323,431,40341,451 etc.
9. One of the production equipment for PCB boards, jet-soldering
machine, with manual toggle clamp on the conveyor chain fixture.
Main application models: 101-A,201,20300,21800 etc.
10. The manual toggle clamp is used as a component on the
"mechanical winding machine" for fixing the core frame.
Main application models: 12130,12130-A etc.
Decorative Building Materials Industry
It refers to the decorative building materials products produced by
PU plastic foaming, such as carved lines, lamp panels, decorative
flowers, internal and external angles, and Roman columns. The
manual toggle clamp is used as a fixture on the "foaming mold."
Main application models: 40341.
Shoemaking Industry
It refers to the PU sole produced by PU foaming mode, and manual
toggle clamps are used as a fixture in PU foaming molds for sole
manufacture. Main application models: 10448.
Note: Manual toggle clamps can be used for all products or parts
that are produced with PU foaming methods and have the
characteristics of continuous mass production.
Note: PU has been widely used in military, sports, construction and
daily necessities. Manual toggle clamps can be used for products
produced with PU foaming methods.
Note: Manual toggle clamps can be used for all products or parts
that are similar to the above points regarding the manufacture of
materials and production methods and have the characteristics of
continuous mass production.
| Q'TY PCS | 1-100 | 101-500 | 501-1000 | 1001-2000 | 2001-5000 | 5000+ |
| EST.DAYS | 1-3 | 3-5 | 5-7 | 7-15 | 15-25 | 25-35 |
