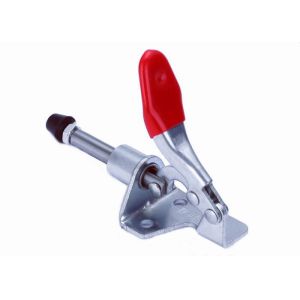

Destaco Push and Pull Type Handle Toggle Clamp Made In China 601 /
GH-301-AM
Manual Quick Release Push and Pull Type Hold Down Handle Bar Toggle
Clamp Destaco 601 / GH-301-AM
Features:
Quick release, small holding capacity
Application:
Welding, machining, checking fixture, assembly fixture,
woodholding, metal holding, workholding clamps

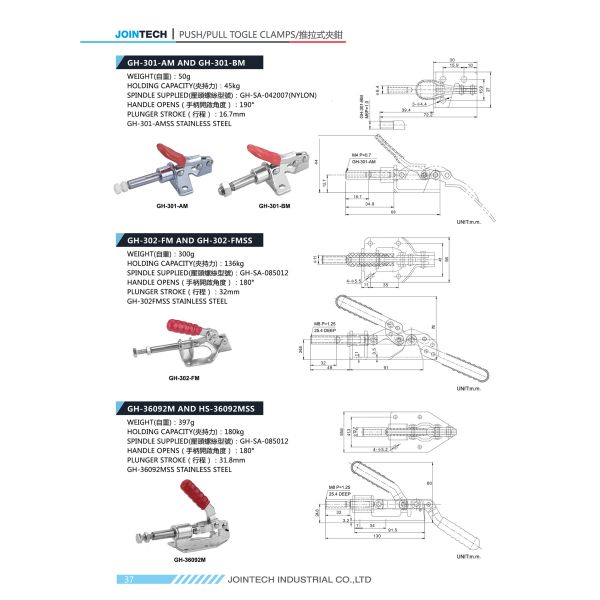

| Weight (g) | Holding Capacity (kg) | Plunger Strock (mm) | Handle Opens (º) | Spindle Supplied |
| 50 | 45 | 16.7 | 190 | GH-SA-042007 (Nylon) |
Automobile Industry
1. Welding and welding inspection of various door panels are used
as positioning bolts and fixtures for welding and testing molds.
Main application models:
702-C,702-D,101-E,10247,12130,12135,12137,304-E etc.
2. Welding of various automobile roof and side windows is used as
fixtures for welding fittings.
Main application models: 11412,203-F,21502-B etc.
3. Welding of various car seats is used as positioning bolts and
fixtures for welding fittings.
Main application models: 11412,12265,102-B,36020,303-E etc.
4. The production of molded foams for luxury car seats is used as
fixtures for foaming molds.
Main application models: 702-D,40341,304-H, etc.
5. The production of various automobile (motorcycle) mufflers is
used as fixtures for welding jigs.
Main application models: 301-AM,
11412,10247,12305,22175,25382,36020,303-E,305-H etc.
6. The production of various automobile (motorcycle) carburetors is
used as fixtures for jigs and fixtures for drilling machines.
Main application models: 201-B,21382,21383,21384 etc.
7. The production of various automobile (motorcycle) wiring harness
and electrical appliances is used as fixtures for testing jigs.
Some of them are also used for assembling fixtures during assembly.
Main application models: 301-AM, 201,201-A,201-B,101-A etc.
8. Production of various automobile steering wheels:
1) used as fixtures for welding jigs,
Main application models: 201,201-A,201-B,101-B.
2) used as end caps for foaming molds.
Main application models: 304,305 series.
9. Production of various automobile interior accessories:
1) Dashboards, etc. (using PP, ABS materials); used as clamping
fixtures for "casting molds";
Main application models: 431,40341.
2) Dashboards, etc. (using PU materials); used as clamping fixtures
for "foaming molds"; and
Main application models: 40341,10448,20448,702-D etc.
3) Inspection of interior accessories is used as positioning and
locking fixtures for testing jigs;
Main application models: 101-D,12130,12135,302-F etc.
4) Lining (with leather, wool cloth materials) is used as fixing
fixtures for fixing upper and lower molds on the press.
Main application models: 40370,40380.
10. The rivets and welds on the chassis of small cars such as
minibuses, jeeps and sedans are used as positioning and locking
fixtures for riveting and welding jigs.
Main application models: 702-C,702-D,702-K,303-E,304-H etc.
Note: Manual toggle clamps can be used for all products or parts
that are similar to the above categories regarding the
manufacturing materials and production methods and have the
characteristics of continuous mass production.
| Q'TY PCS | 1-100 | 101-500 | 501-1000 | 1001-2000 | 2001-5000 | 5000+ |
| EST.DAYS | 1-3 | 3-5 | 5-7 | 7-15 | 15-25 | 25-35 |
