500lbs Flange Base Long Open Bar Horizontal Handle Toggle Clamp for
Jigs GH-22185

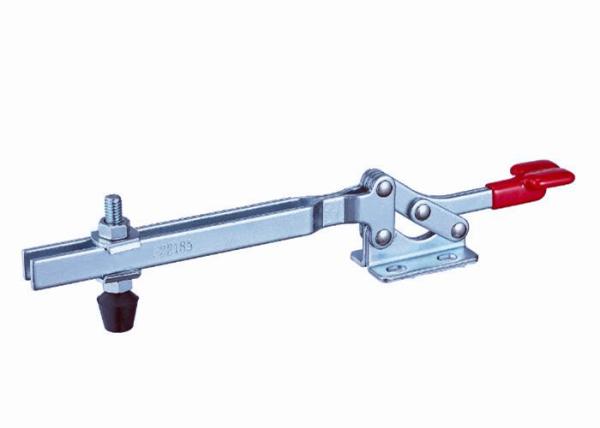

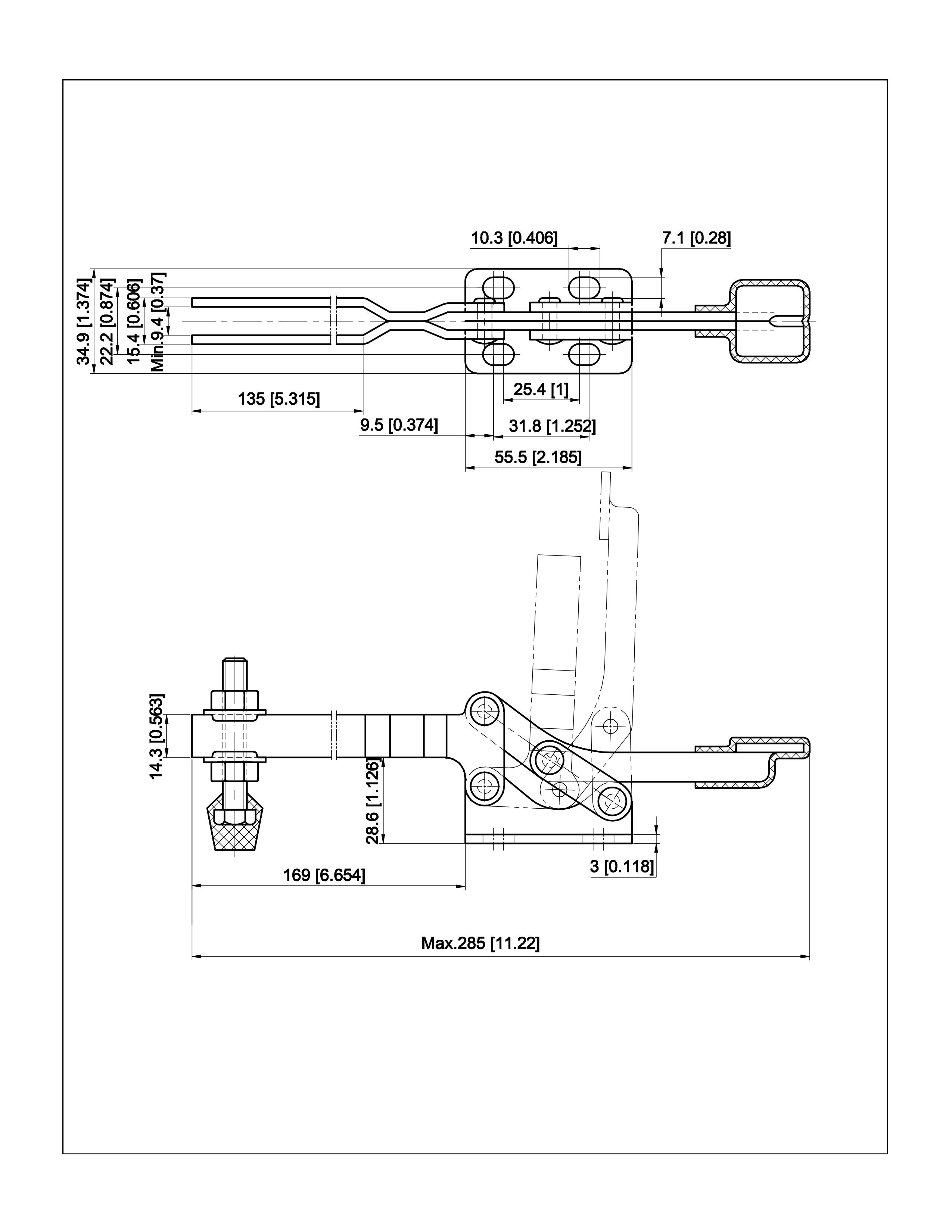

Horizontal Quick Release Hold Down Handle Toggle Clamp GH-22185
Features:
Quick release, big holding capacity
Application:
Welding, machining, checking fixture, assembly fixture,
woodholding, metal holding, workholding clamps
| Weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
| 360 | 250 | 96 | 88 | GH-FC-56212 |
Refrigeration Equipment Industry
Refrigeration equipment mainly means medium and large cold stores,
refrigerators/ cold closets, refrigeration trucks and other
products. These products' manual toggle clamps are mainly used in
the following aspects:
(1) Production of refrigeration equipment intermediate layer - PU
foam insulation material serves as fixtures on the "foaming mold."
Main application models: 36224,36003,304-E,304-H,40341 etc.
(2) The welding of keels of cabinets, boxes and cars are used as
fixtures and positioning bolts for "welding jigs."
Main application models: 22185,11421,11412,203-F,12265,36020,304-E
etc.
(3) The welding of gold sheet metal for the inner and outer layers
of refrigerators, boxes and cars can be used as follows.
(3-1) For medium and small mass production, it is used in "welding
molds."
Main application models: 11412,12265,210-C,203-F etc.
(3-2) For medium and large scale non-standard production, F-type
clamps or crushing clamps are used, while C-type clamps are less
used.
Electronics Industry
1. All electronic products- such as televisions, radios, DVD,
electronic doorbells, and computers, etc., are all with circuit
boards which are composed of PCB boards and electronic components
inserted and attached to them. There are two ways to insert and
attach electronic components to PCB boards:
(1) Automatic, SMT using products, AI automatic equipment to insert
and attach electronic components; this method does not require a
manual toggle clamp.
(2) Assembly line, divided into the card slot type and ring type. A
manual toggle clamp is generally used in the ring-type assembly
line of inserting and attaching electronic components on PCB
boards, which is used to fix PCB boards. No manual toggle clamp is
needed in the card slot type production line.
Main application models:
101-A,20400,201,201-A,20100,22005,20800,20300,22100 etc.
2. No matter which way the circuit board is manufactured in point
"5-1," manual toggle clamps are used on "test jigs" for "online
testing" and "testing line."
Main application models: 101-A,201,10250,10250-U,304,305 series
etc.
3. In the production of various electronic products, equipment, and
electrical wiring harness for household appliances, manual toggle
clamps are used in the inspection process, and in some factories,
manual toggle clamps are used in the assembly process for "test
fixtures" and " assembly fixtures."
Main application models: 13005,101-A,13009,201,201-A,20800,36070
etc.
4. For the production of electronic components such as filters and
amplifiers, manual toggle clamps are used on test equipment and
test jigs.
Main application models: 22185,
101-A,102-B,11401,12050-U,201-B,20752-B,22100 etc.
5. A manual toggle clamp is used as fittings in electronic
production equipment, such as crest welders, reflow soldering
machines, DDC machines, reflow ovens, stretching machines, and
screen printing machines.
Main application models: 101-A,102-B,40341,80325 etc.
| Q'TY PCS | 1-100 | 101-500 | 501-1000 | 1001-2000 | 2001-5000 | 5000+ |
| EST.DAYS | 1-3 | 3-5 | 5-7 | 7-15 | 15-25 | 25-35 |
| Brand | JOINTECH |
| Model | GH-22165 / 22185 / 22170 / 22180 / 22190 / 22195 / 22200 |
| Bar Type | Short U / Solid / Long Open Bar |
| Base Type | Flanged or Straight |
| Handle Type | Straight |
| Clamping Type | Horizontal |
| Operation Type | Hold Down Quick Clamping |
| Standard / Non | Standard |
| Holding Force (LBS) | 500 |
| Spindle Standard | mm/inch / Rubber Head Spindle |
| Material | Carbon Steel |
| Surface Treatment | Zinc Plated; Black Oxide; |
| Finish | Silver; Natural; Red / Blue / Black / Orange Dipped Grip; |
| Price Term | Ex-works; FOB Shenzhen; CIF; CFR; DDU; DDP; DA; DP; |
| Payment Term | T/T; L/C; Western Union; Visa; MoneyGram; Paypal; |
| Sample Request | F.O.C. |
| Stock Status: (PCS) | 200 |
| Package Method | PE Bag; Inner and Master Carton; Each Master Carton is Less than
50lbs; |
| Pallet | Wooden / Fumigation / Plywood / Plastic / Aluminum Alloy; |
