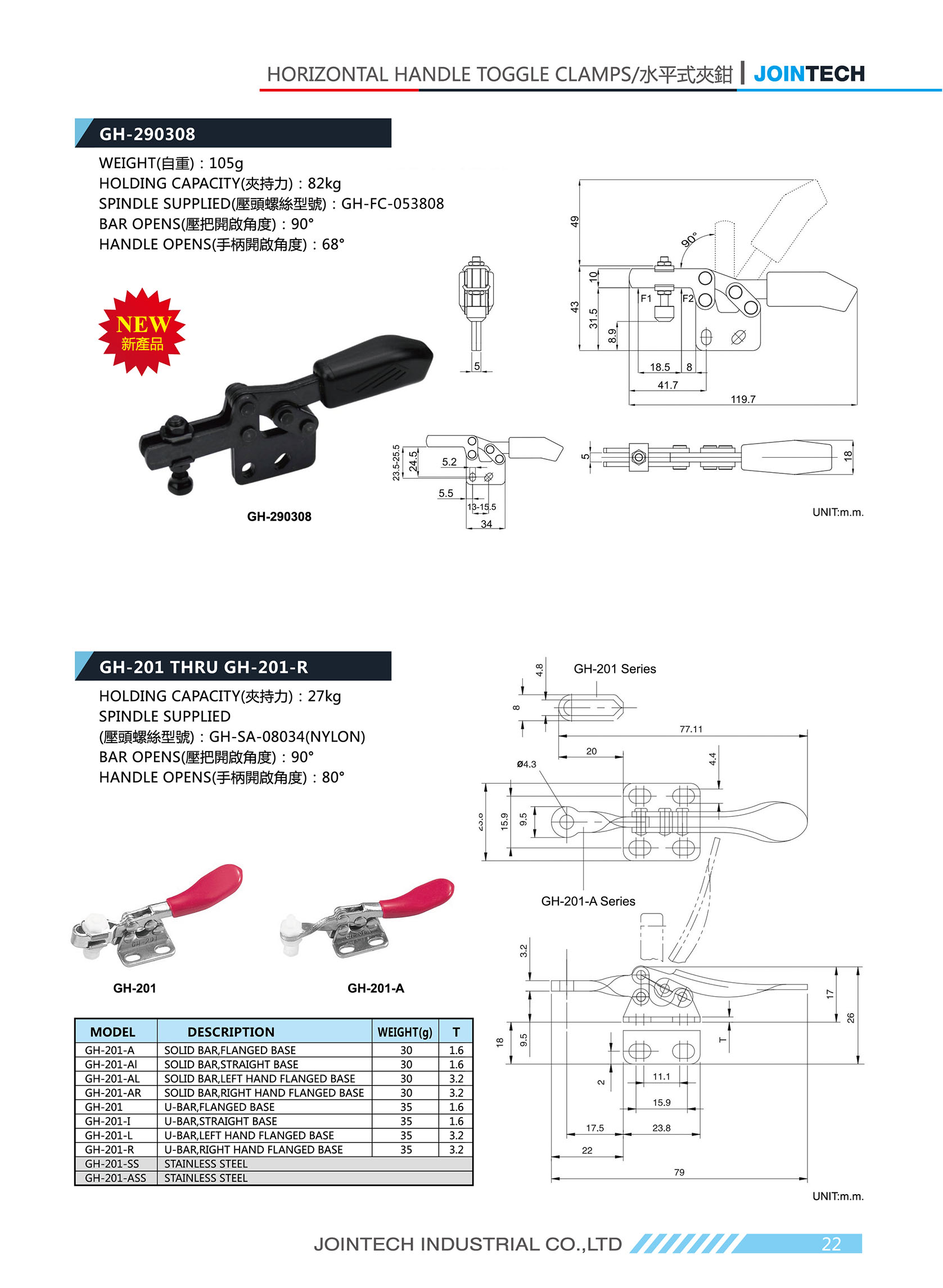

Black Oxide Straight Base Quick Release Horizontal Handle Toggle
Clamp GH-290308
Horizontal Hold Down Handle Toggle Clamp GH-290308
Features:
Quick release, small holding capacity
Application:
Welding, machining, checking fixture, assembly fixture,
woodholding, metal holding, workholding clamps
| Weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
| 105 | 82 | 90 | 68 | GH-FC-053808 |
Refrigeration Equipment Industry
Refrigeration equipment mainly means medium and large cold stores,
refrigerators/ cold closets, refrigeration trucks and other
products. These products' manual toggle clamps are mainly used in
the following aspects:
(1) Production of refrigeration equipment intermediate layer - PU
foam insulation material serves as fixtures on the "foaming mold."
Main application models: 290308,36224,36003,304-E,304-H,40341 etc.
(2) The welding of keels of cabinets, boxes and cars are used as
fixtures and positioning bolts for "welding jigs."
Main application models: 11421,11412,203-F,12265,36020,304-E etc.
(3) The welding of gold sheet metal for the inner and outer layers
of refrigerators, boxes and cars can be used as follows.
(3-1) For medium and small mass production, it is used in "welding
molds."
Main application models: 11412,12265,210-C,203-F etc.
(3-2) For medium and large scale non-standard production, F-type
clamps or crushing clamps are used, while C-type clamps are less
used.
Decorative Building Materials Industry
It refers to the decorative building materials products produced by
PU plastic foaming, such as carved lines, lamp panels, decorative
flowers, internal and external angles, and Roman columns. The
manual toggle clamp is used as a fixture on the "foaming mold."
Main application models: 40341.
Automobile Industry
1. Production of various automobile interior accessories:
1) Dashboards, etc. (using PP, ABS materials); used as clamping
fixtures for "casting molds";
Main application models: 431,40341.
2) Dashboards, etc. (using PU materials); used as clamping fixtures
for "foaming molds"; and
Main application models:290308, 40341,10448,20448,702-D etc.
3) Inspection of interior accessories is used as positioning and
locking fixtures for testing jigs;
Main application models: 101-D,12130,12135,302-F etc.
4) Lining (with leather, wool cloth materials) is used as fixing
fixtures for fixing upper and lower molds on the press.
Main application models: 40370,40380.
2. The rivets and welds on the chassis of small cars such as
minibuses, jeeps and sedans are used as positioning and locking
fixtures for riveting and welding jigs.
Main application models: 702-C,702-D,702-K,303-E,304-H etc.
3. In the production of partially refitted auto bodies, the manual
toggle clamp is used in the assembly and welding of auto bodies.
Main application models: F clamps and Toggle Pliers.
4. Manual toggle clamps are used for local spot welding during
assembly in small and medium sized automobile plants.
Main application models: Toggle Pliers.
5. Production of luxurious minibus and bus bodies:
1) Body keel welding is used as fixtures for welding jigs.
Main application models: 702-D,10247,12265,11412 etc.
2) For welding of the outer metal plate of the car body, manual
toggle clamps are used as fixtures.
Main application models: F clamps and Toggle Pliers.
3) For the adhesion of super-luxury bus and minibus interior
accessories, manual toggle clamps are used for adhesion and
fixation between interior accessories and auto bodies.
Main application models: F clamps.
Note: Manual toggle clamps can be used for all products or parts
that are similar to the above categories regarding the
manufacturing materials and production methods and have the
characteristics of continuous mass production.
Working principle: quick clamp based on planar four-bar linkage
mechanism in the swing
Mechanical principles to the design, the basic structure is made up
of connecting rod, rack
And two-pole mount up to four elements. When the connecting rod
between the two hinge points and
Connecting rod hinge points, three points in the same line, body is
dead.And its applied mechanics in the dead center of clamp works.
Fixture features: simple structure, high strength, good resistance
to abrasion, easyto install, fast spirit, and is safe and
reliable,Strong clamping force, greatly improving efficiency.
| Q'TY PCS | 1-100 | 101-500 | 501-1000 | 1001-2000 | 2001-5000 | 5000+ |
| EST.DAYS | 1-3 | 3-5 | 5-7 | 7-15 | 15-25 | 25-35 |
| Brand | JOINTECH |
| Model | GH-290308 / 293229 / 290696 |
| Bar Type | U Bar / Open |
| Base Type | Straight |
| Handle Type | Straight |
| Clamping Type | Horizontal |
| Operation Type | Hold Down Quick Clamping |
| Standard / Non | Standard |
| Holding Force (LBS) | 300 |
| Spindle Standard | mm/inch |
| Material | Carbon Steel |
| Surface Treatment | Black Oxide; |
| Finish | Black |
| Design | OEM & ODM |
| Price Term | Ex-works; FOB Shenzhen; CIF; CFR; DDU; DDP; DA; DP; |
| Payment Term | T/T; L/C; Western Union; Visa; MoneyGram; Paypal; |
| Sample Request | F.O.C. / $2USD |
| Stock Status: (PCS) | 500 |
| Package Method | PE Bag; Inner and Master Carton; Each Master Carton is Less than
50lbs; |
| Shipment Method | Sea / Train / Truck / UPS / DHL / FEDEX / TNT / EMS |
