Destaco Vertical Handle Toggle Clamp Use For Automobile Industry
305-U / GH-13005
Manual Quick Release Vertical Hold Down Handle U Bar Toggle Clamp
Destaco 305-U / GH-13005
Features:
Quick release, small holding capacity
Application:
Welding, machining, checking fixture, assembly fixture,
woodholding, metal holding, workholding clamps

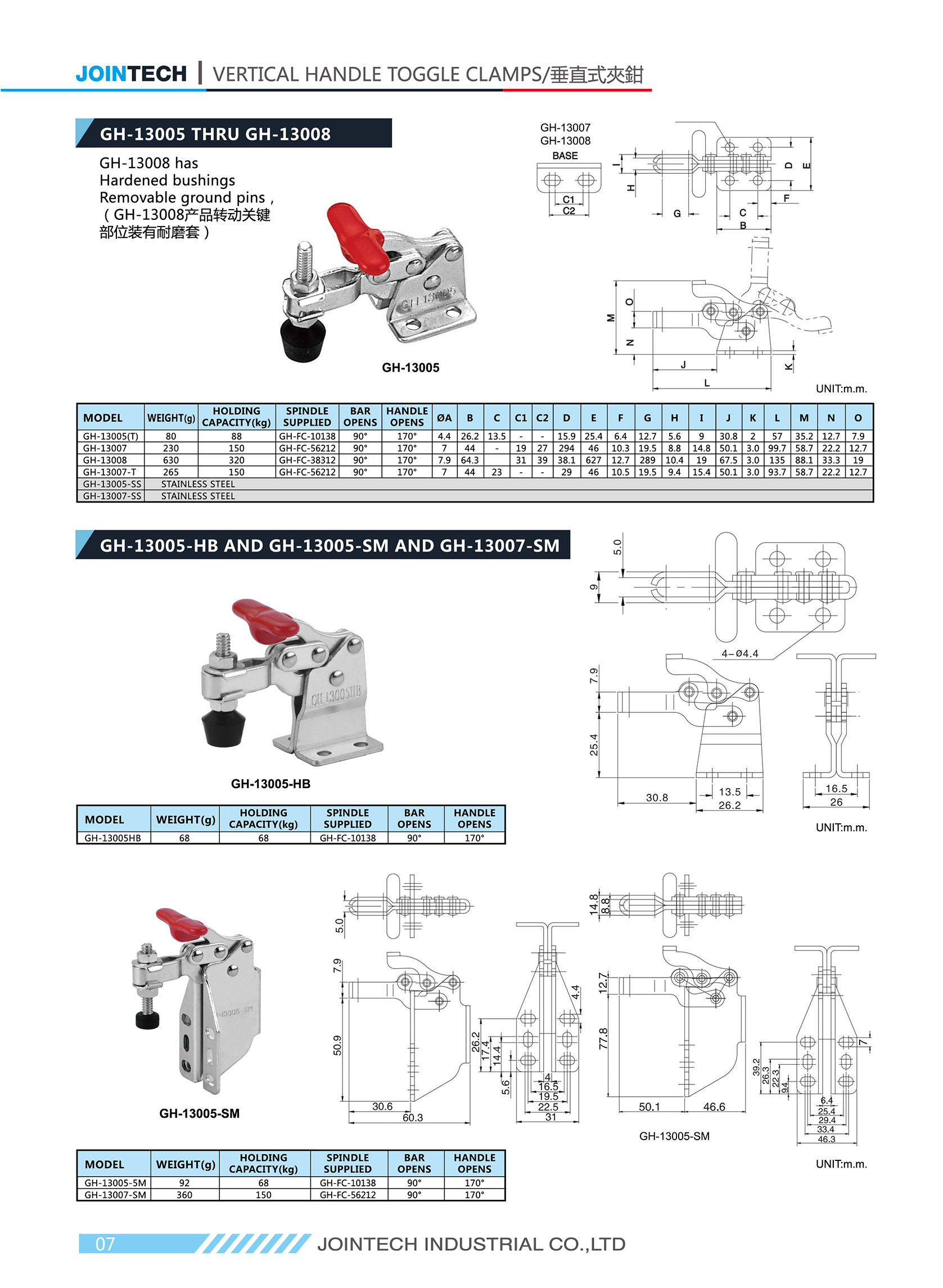

| Weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
| 80 | 88 | 90 | 170 | GH-FC-10138 |
Automobile Industry
1. Welding of various vehicle frames and accessories (small sheet
metal parts) is used as positioning bolts and fixtures for welding
jigs.
Main application models:
13005,702-C,702-D,702-K,101-J,10247,12265,304-E,304-H,303-E etc.
2. Welding inspection of various vehicle frames and accessories
(small sheet metal parts) is used as positioning bolts and fixtures
for inspecting jigs. Main application models:
12135,12137,304-C,302-F etc.
3. Stamping of all kinds of vehicle frames, accessories (small
sheet metal parts) and sheet metal door panel parts is used as
positioning bolts and fixtures for stamping parts inspecting jigs.
Main application models: 13005,12130,12135,11412,302-F,36020 etc.
4. Welding and welding inspection of various door panels are used
as positioning bolts and fixtures for welding and testing molds.
Main application models:13005,
702-C,702-D,101-E,10247,12130,12135,12137,304-E etc.
5. Welding of various automobile roof and side windows is used as
fixtures for welding fittings. Main application models:
11412,203-F,21502-B.
6. Welding of various car seats is used as positioning bolts and
fixtures for welding fittings. Models:11412,12265,102-B,36020,303-E
etc.
7. The production of molded foams for luxury car seats is used as
fixtures for foaming molds. Main application models:
702-D,40341,304-H.
8. The production of various automobile (motorcycle) mufflers is
used as fixtures for welding jigs.
Main application models:
11412,10247,12305,22175,25382,36020,303-E,305-H etc.
| Q'TY PCS | 1-100 | 101-500 | 501-1000 | 1001-2000 | 2001-5000 | 5000+ |
| EST.DAYS | 1 | 3 | 7 | 15 | 25 | 35 |
Vertical Toggle Clamp
The vertical toggle handle stands straight when locked. It is
designed with various holding capacities. It can apply a
considerable amount of pressure. Every time you pull the handle
away from the tool, you can lift the securing bar and place an
object under the bar. As the handle moves into vertical alignment,
the pressure is applied. Not only is it safe for a worktable, but
it isalso used to secure wood around machinery.
| Brand | JOINTECH |
| Model | GH-13005 / 13005-T / 13005-SS |
| Bar Type | U Bar |
| Base Type | Flanged |
| Handle Type | Straight / T-Handle |
| Clamping Type | Vertical |
| Operation Type | Hold Down Quick Clamping |
| Standard / Non | Standard |
| Holding Force (LBS) | 176 |
| Spindle Standard | mm/inch |
| Material | Metal; SUS#201; SUS#304; SUS#316; |
| Surface Treatment | Zinc Plated; Nickle Plated; Black Oxide; Tumbled; Polished; |
| Finish | Silver; Natural; Red / Blue / Black / Orange Dipped Grip; |
| Design | OEM & ODM |
| Price Term | Ex-works; FOB Shenzhen; CIF; CFR; DDU; DDP; DA; DP; |
| Payment Term | T/T; L/C; Western Union; Visa; MoneyGram; Paypal; |
| Sample Request | F.O.C. / $1USD |
| Stock Status: (PCS) | 5000 |
| Package Method | PE Bag; Inner and Master Carton; Each Master Carton is Less than
50lbs; |
| Pallet | Wooden / Fumigation / Plywood / Plastic / Aluminum Alloy; |
| Shipment Method | Sea / Train / Truck / UPS / DHL / FEDEX / TNT / EMS |
