Hand Tool Horizontal Handle Toggle Clamp Apply in Electronics Industry GH-203-FL

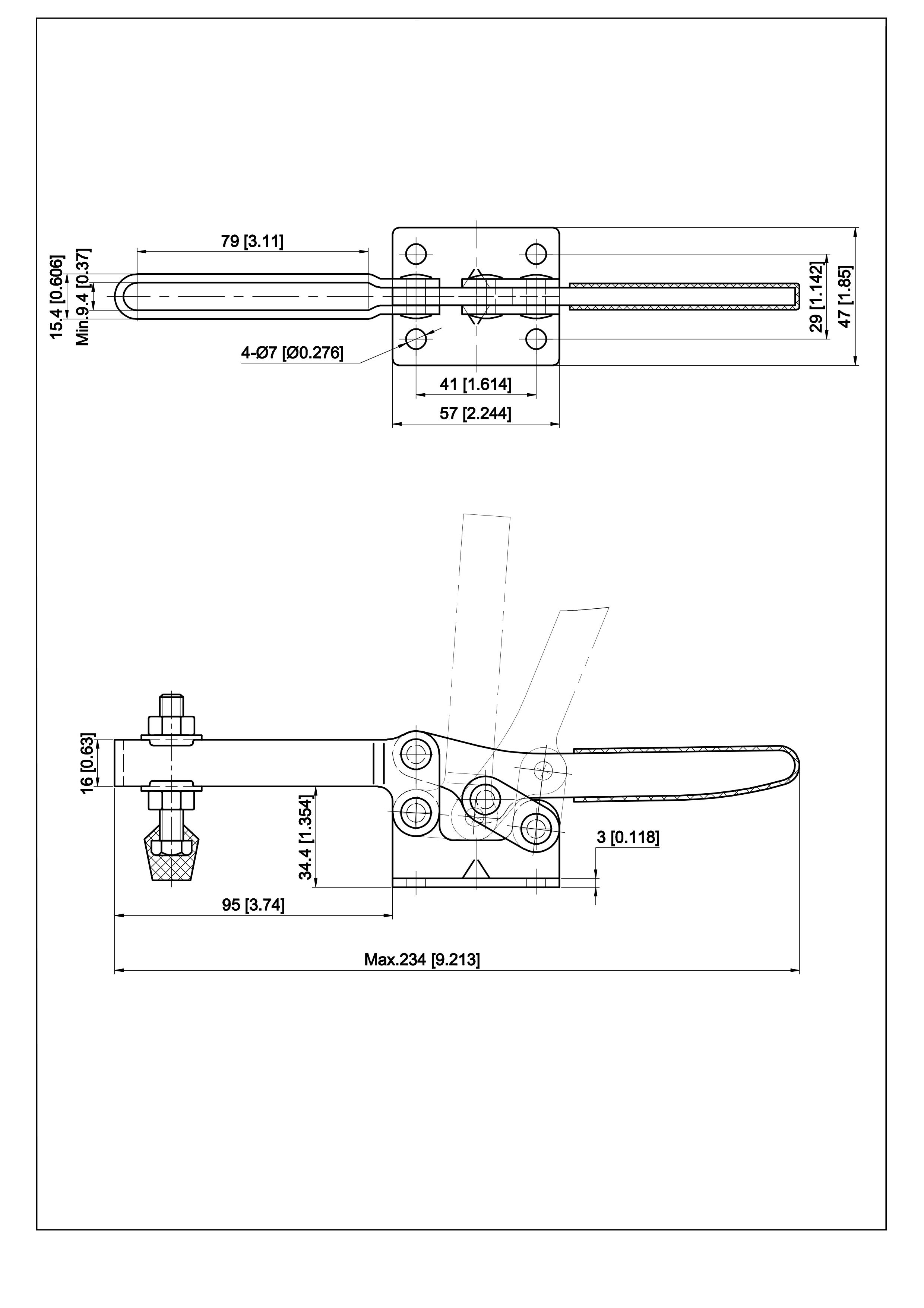

Horizontal Hold Down Handle Toggle Clamp GH-203-FL
Features:
Quick release, big holding capacity
Application:
Welding, machining, checking fixture, assembly fixture,
woodholding, metal holding, workholding clamps
| Weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
| 380 | 250 | 85 | 58 | GH-FC-56212 |
Electronics Industry
1. Manual toggle clamps are used in the assembly line and testing
process of small motors and electric tools.
Main application models: 203-FL,
12050,12050-U,101-A,102-B,301-A,304-C etc.
2. The metal shell of various electrical appliances, such as water
heaters, microwave ovens, air conditioners, refrigerators,
cabinets, and chassis is quickly clamped on the "welding molds" as
a fixture. Main application models:
11412,203-F,225-D,21502-B,102-B,101-D
3. Electrostatic spraying equipment and manual toggle clamps serve
as accessories, mainly for barrel cover opening and closing. (In
the spraying production line, a manual toggle clamp is sometimes
used to fix the processed object).
Main application models: 40323,431,40341,451 etc.
4. One of the production equipment for PCB boards, jet-soldering
machine, with manual toggle clamp on the conveyor chain fixture.
Main application models: 101-A,201,20300,21800 etc.
5. The manual toggle clamp is used as a component on the
"mechanical winding machine" for fixing the core frame.
Main application models: 12130,12130-A etc.
6. Electronic toys, game consoles and IC cards (The use of manual
toggle clamps is the same as in points 5-1 and 5-2).
Railway Vehicle Industry (including subways and light rail
vehicles)
1. Body keel welding is used as fixtures for welding molds.
Main application models:
101-J,10247,22502-B,11421,203-F,12130,702-C,702-D.
2. For welding of the outer metal plate of the car body, manual
toggle clamps are used as fixtures.
Main application models: F clamps.
3. Welding of door panels is used as positioning bolts and fixtures
for welding jigs. Main application models:
11412,12205,10247,225-D,21382,304-C,304-E etc.
4. Welding of seats is used as fixtures for welding fittings. Main
application models: 12265,11421,36020,22235 etc.
5. The production of molded foams for luxury seats is used as
fixtures for foaming molds. Main application models:
702-D,40341,304-H etc.
6. The adhesion of luxury auto interior accessories is used for
adhesion and fixation between interior accessories and auto bodies.
Main application models: F clamps.
| Q'TY PCS | 1-100 | 101-500 | 501-1000 | 1001-2000 | 2001-5000 | 5000+ |
| EST.DAYS | 1-3 | 3-5 | 5-7 | 7-15 | 15-25 | 25-35 |
| Model | GH-203-FL |
| Bar Type | Long U-Shape Bar |
| Base Type | Flanged Base |
| Handle Type | Straight |
| Clamping Type | Horizontal |
| Operation Type | Hold Down Quick Clamping |
| Holding Force (LBS) | 760 |
| Spindle Standard | mm/inch with Rubber Head Spindle |
| Material | Metal |
| Surface Treatment | Zinc Plated |
| Finish | Silver; Anti-slip Red Dipped Grip; |
| Price Term | Ex-works; FOB Shenzhen; CIF; CFR; DDU; DDP; DA; DP; |
| Payment Term | T/T; L/C; Western Union; Visa; MoneyGram; Paypal; |
| Package Method | PE Bag; Inner and Master Carton; Each Master Carton is Less than
50lbs; |
| Pallet | Wooden / Fumigation / Plywood / Plastic / Aluminum Alloy; |
| Shipment Method | Sea / Train / Truck / UPS / DHL / FEDEX / TNT / EMS |
