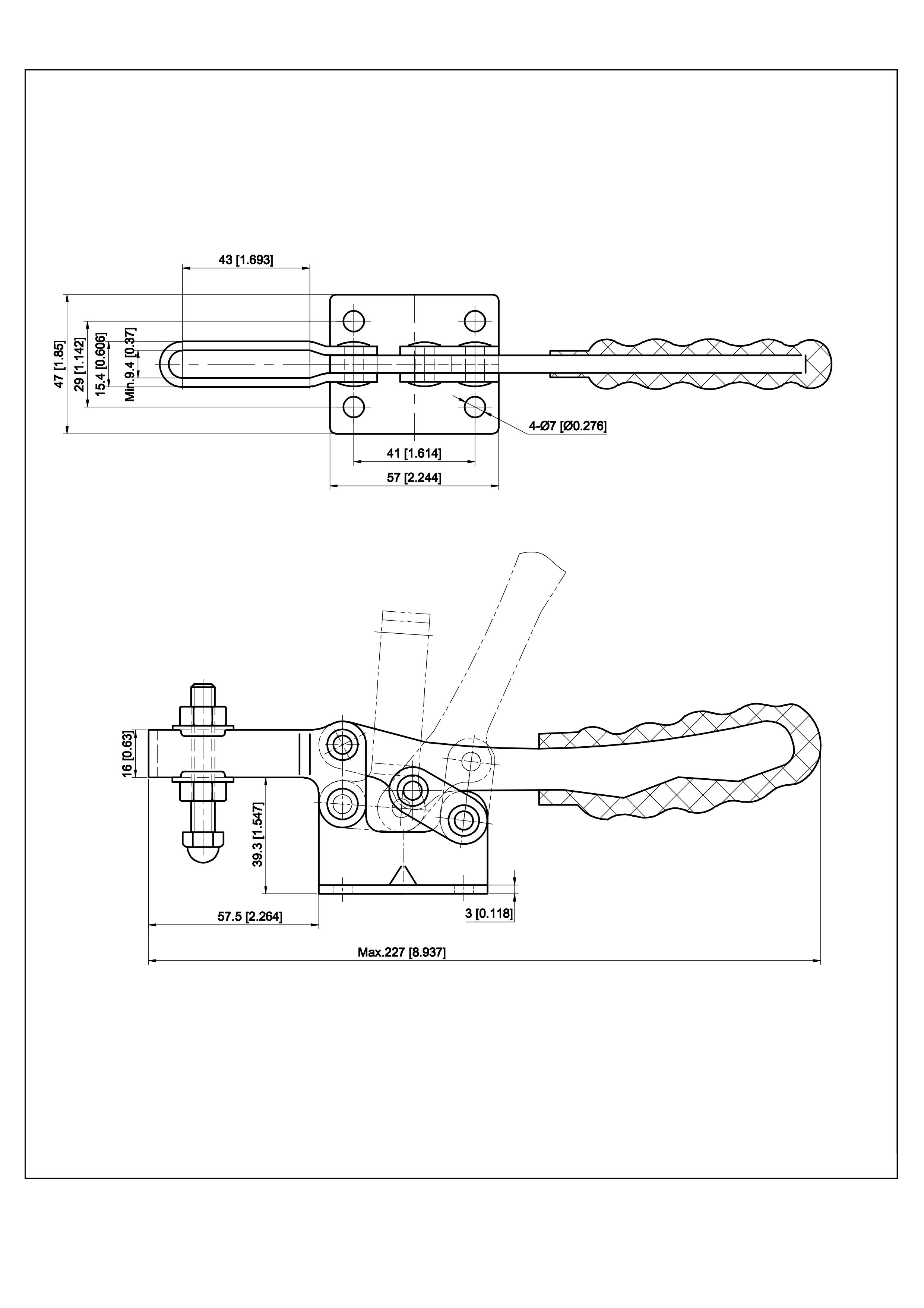

Horizontal Hold Down Handle Toggle Clamp GH-203-P
Features:
Quick release, big holding capacity
Application:
Welding, machining, checking fixture, assembly fixture,
woodholding, metal holding, workholding clamps
| Weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
| 383 | 226 | 85 | 58 | GH-FC-56212 |
Refrigeration Equipment Industry
Refrigeration equipment mainly means medium and large cold stores,
refrigerators/ cold closets, refrigeration trucks and other
products. These products' manual toggle clamps are mainly used in
the following aspects:
(1) Production of refrigeration equipment intermediate layer - PU
foam insulation material serves as fixtures on the "foaming mold."
Main application models: 203-P, 36224,36003,304-E,304-H,40341 etc.
(2) The welding of keels of cabinets, boxes and cars are used as
fixtures and positioning bolts for "welding jigs."
Main application models: 11421,11412,203-F,12265,36020,304-E etc.
(3) The welding of gold sheet metal for the inner and outer layers
of refrigerators, boxes and cars can be used as follows.
(3-1) For medium and small mass production, it is used in "welding
molds." Main application models: 11412,12265,210-C,203-F etc.(3-2)
For medium and large scale non-standard production, F-type clamps
or crushing clamps are used, while C-type clamps are less used.
Decorative Building Materials Industry
It refers to the decorative building materials products produced by
PU plastic foaming, such as carved lines, lamp panels, decorative
flowers, internal and external angles, and Roman columns. The
manual toggle clamp is used as a fixture on the "foaming mold."
Main application models: 40341.
Electronics Industry
1. Manual toggle clamps are used in the assembly line and testing
process of small motors and electric tools.
Main application models: 12050,12050-U,101-A,102-B,301-A,304-C etc.
2. The metal shell of various electrical appliances, such as water
heaters, microwave ovens, air conditioners, refrigerators,
cabinets, and chassis is quickly clamped on the "welding molds" as
a fixture. Main application models:
11412,203-F,225-D,21502-B,102-B,101-D
3. Electrostatic spraying equipment and manual toggle clamps serve
as accessories, mainly for barrel cover opening and closing. (In
the spraying production line, a manual toggle clamp is sometimes
used to fix the processed object).
Main application models: 40323,431,40341,451 etc.
4. One of the production equipment for PCB boards, jet-soldering
machine, with manual toggle clamp on the conveyor chain fixture.
Main application models: 203-P, 101-A,201,20300,21800 etc.
5. The manual toggle clamp is used as a component on the
"mechanical winding machine" for fixing the core frame.
Main application models: 12130,12130-A etc.
6. Electronic toys, game consoles and IC cards.
