Stainless Steel Horizontal Handle Toggle Clamp Use on SMT Using
Products GH-20752-BSS

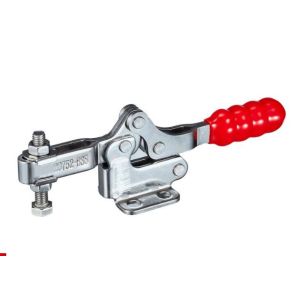

Horizontal Hold Down Handle Toggle Clamp GH-20752-BSS
Features:
Quick release, small holding capacity
Application:
Welding, machining, checking fixture, assembly fixture,
woodholding, metal holding, workholding clamps

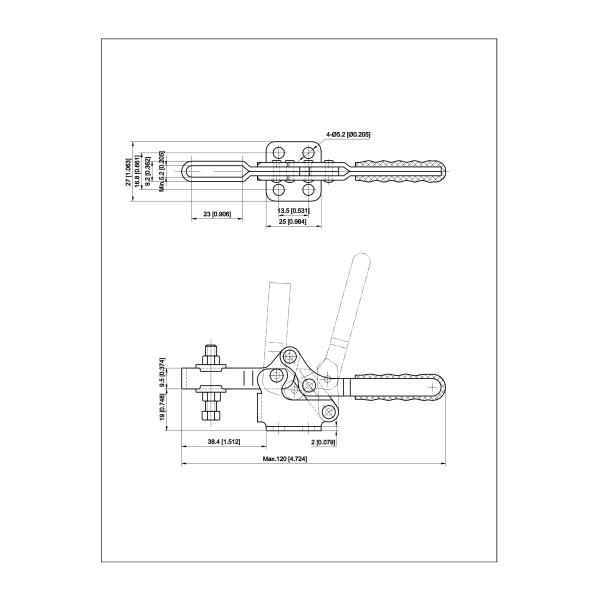

| Weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
| 100 | 75 | 95 | 75 | GH-SA-064010 |
Electronics Industry
1. All electronic products- such as televisions, radios, DVD,
electronic doorbells, and computers, etc., are all with circuit
boards which are composed of PCB boards and electronic components
inserted and attached to them. There are two ways to insert and
attach electronic components to PCB boards:
(1) Automatic, SMT using products, AI automatic equipment to insert
and attach electronic components; this method does not require a
manual toggle clamp.
(2) Assembly line, divided into the card slot type and ring type. A
manual toggle clamp is generally used in the ring-type assembly
line of inserting and attaching electronic components on PCB
boards, which is used to fix PCB boards. No manual toggle clamp is
needed in the card slot type production line.
Main application models:
20752-BSS,101-A,20400,201,201-A,20100,22005,20800,20300,22100 etc.
2. No matter which way the circuit board is manufactured in
point,manual toggle clamps are used on "test jigs" for "online
testing" and "testing line."
Main application models: 101-A,201,10250,10250-U,304,305 series
etc.
3. In the production of various electronic products, equipment, and
electrical wiring harness for household appliances, manual toggle
clamps are used in the inspection process, and in some factories,
manual toggle clamps are used in the assembly process for "test
fixtures" and " assembly fixtures."
Main application models: 20752-BSS,
13005,101-A,13009,201,201-A,20800,36070 etc.
4. For the production of electronic components such as filters and
amplifiers, manual toggle clamps are used on test equipment and
test jigs.
Main application models:
101-A,102-B,11401,12050-U,201-B,20752-B,22100 etc.
5. A manual toggle clamp is used as fittings in electronic
production equipment, such as crest welders, reflow soldering
machines, DDC machines, reflow ovens, stretching machines, and
screen printing machines.
Main application models: 101-A,102-B,40341,80325 etc.
Aircraft Manufacturing Industry
1. In the production of body keels, the manual toggle clamp is used
in "welding molds". The main types of use vary from factory to
factory.
2. For the riveting of outer metal sheets and gluing of inner
accessories, manual toggle clamps are used as a fixture.
Main application models: F clamps.
S. Machinery Manufacturing Industry
For the production of modular machine tools, machining centers and
other machine tool equipment on its workbench or in the conversion
mechanism, manual toggle clamps can be used as fixtures and
change-over gears
Main application models: Push Pull Toggle Clamps.
Machining Industry
Manual toggle clamps can be used to replace the old stationary
fixture on the workbench of the milling machine, slotting machine,
drilling machine, boring machine, modular machine tool, machining
center, CNC (various) machine tools, and other mechanical
processing equipment process mechanical parts.
Main application models: Push-Pull Toggle Clamps.,Heavy Duty
Weldable Toggle Clamps.
| Q'TY PCS | 1-100 | 101-500 | 501-1000 | 1001-2000 | 2001-5000 | 5000+ |
| EST.DAYS | 1-3 | 3-5 | 5-7 | 7-15 | 15-25 | 25-35 |
| Model | GH-20752-B / 21502-B / 23502-B / 24502-B / 20752-BSS |
| Bar Type | U Bar |
| Base Type | Flanged |
| Handle Type | Straight |
| Clamping Type | Horizontal |
| Operation Type | Hold Down Quick Clamping |
| Standard / Non | Standard |
| Holding Force (LBS) | 150 |
| Spindle Standard | mm/inch |
| Material | Metal; SUS#201; SUS#304; SUS#316; |
| Surface Treatment | Zinc Plated; Nickled Plated; Tumbled; Polished;Black Oxide; |
| Finish | Silver; Natural; Red / Blue / Black / Orange Anti-slip Dipped Grip; |
| Design | OEM & ODM |
| Price Term | Ex-works; FOB Shenzhen; CIF; CFR; DDU; DDP; DA; DP; |
| Payment Term | T/T; L/C; Western Union; Visa; MoneyGram; Paypal; |
| Sample Request | F.O.C. / $2USD |
| Stock Status: (PCS) | 500 |
| Package Method | PE Bag; Inner and Master Carton; Each Master Carton is Less than
50lbs; |
| Pallet | Wooden / Fumigation / Plywood / Plastic / Aluminum Alloy; |
| Shipment Method | Sea / Train / Truck / UPS / DHL / FEDEX / TNT / EMS |
