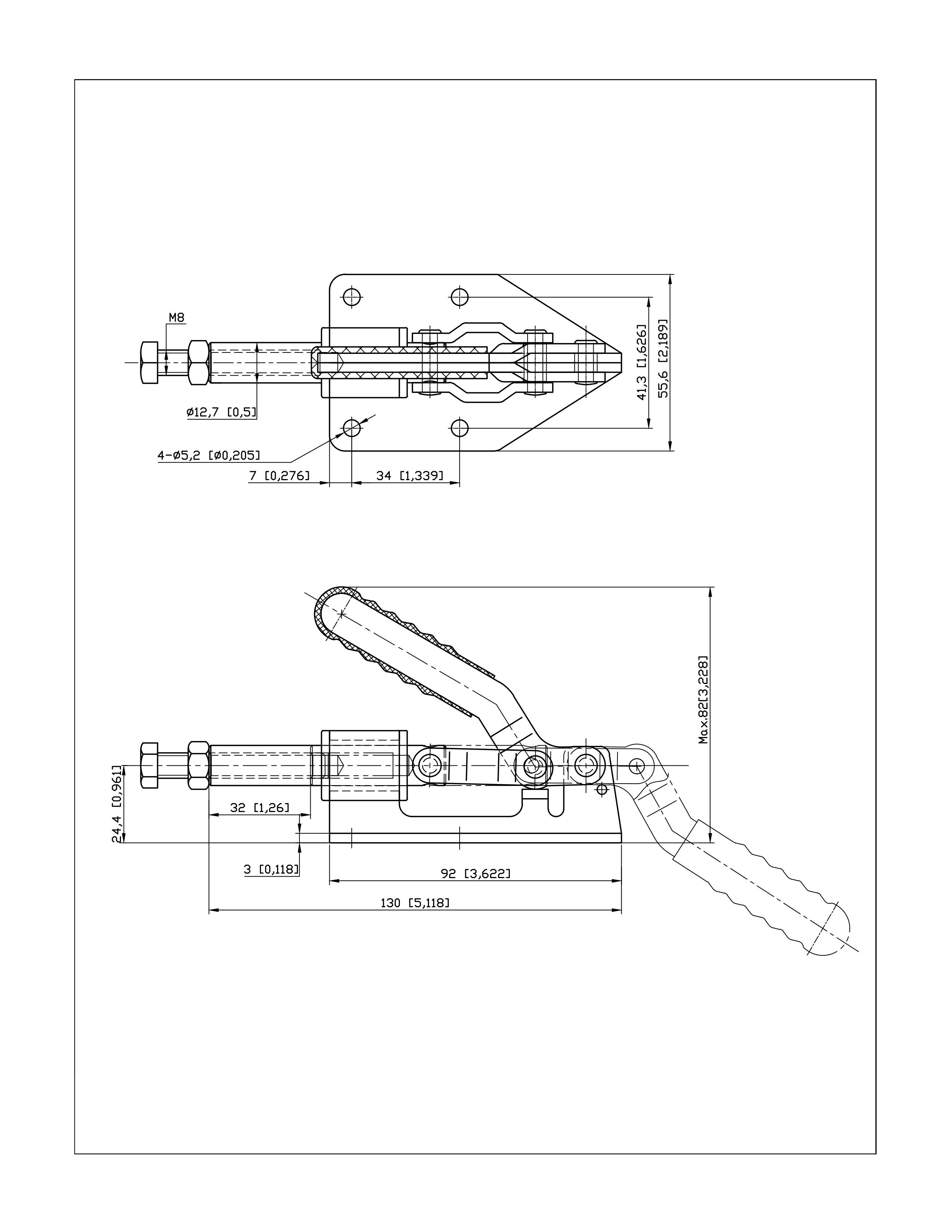

Goodhand Manual Quick Release Straight Line Push Pull Type Toggle
Clamp GH-36092
Quick Release Push and Pull Type Hold Down Handle Toggle Clamp
GH-36092
Features:
Quick release, medium holding capacity
Application:
Welding, machining, checking fixture, assembly fixture,
woodholding, metal holding, workholding clamps
| Weight (g) | Holding Capacity (kg) | Plunger Strock (mm) | Handle Opens (º) | Spindle Supplied |
| 397 | 180 | 31.8 | 180 | GH-SA-085012 |
Automobile Industry
1. Production of various automobile steering wheels:
1) used as fixtures for welding jigs. Main application models:
201,201-A,201-B,101-B.
2) used as end caps for foaming molds. Main application models:
304,305 series.
2. Production of various automobile interior accessories:
1) Dashboards, etc. (using PP, ABS materials); used as clamping
fixtures for "casting molds";
Main application models: 431,40341.
2) Dashboards, etc. (using PU materials); used as clamping fixtures
for "foaming molds"; and
Main application models: 40341,10448,20448,702-D etc.
3) Inspection of interior accessories is used as positioning and
locking fixtures for testing jigs;
Main application models: 101-D,12130,12135,302-F etc.
4) Lining (with leather, wool cloth materials) is used as fixing
fixtures for fixing upper and lower molds on the press.
Main application models: 40370,40380.
3. The rivets and welds on the chassis of small cars such as
minibuses, jeeps and sedans are used as positioning and locking
fixtures for riveting and welding jigs.
Main application models: 702-C,702-D,702-K,303-E,304-H etc.
4. Welding and welding inspection of various door panels are used
as positioning bolts and fixtures for welding and testing molds.
Main application models:
702-C,702-D,101-E,10247,12130,12135,12137,304-E etc.
5. Welding of various automobile roof and side windows is used as
fixtures for welding fittings.
Main application models: 11412,203-F,21502-B etc.
6. Welding of various car seats is used as positioning bolts and
fixtures for welding fittings.
Main application models: 11412,12265,102-B,36020,303-E etc.
7. The production of molded foams for luxury car seats is used as
fixtures for foaming molds.
Main application models: 36092, 702-D,40341,304-H, etc.
8. The production of various automobile (motorcycle) mufflers is
used as fixtures for welding jigs.
Main application models: 36092,
11412,10247,12305,22175,25382,36020,303-E,305-H etc.
9. The production of various automobile (motorcycle) carburetors is
used as fixtures for jigs and fixtures for drilling machines.
Main application models: 201-B,21382,21383,21384 etc.
10. The production of various automobile (motorcycle) wiring
harness and electrical appliances is used as fixtures for testing
jigs. Some of them are also used for assembling fixtures during
assembly.
Main application models: 201,201-A,201-B,101-A etc.
Electronics Industry
1. For the production of electronic components such as filters and
amplifiers, manual toggle clamps are used on test equipment and
test jigs.
Main application models:
101-A,102-B,11401,12050-U,201-B,20752-B,22100 etc.
2. A manual toggle clamp is used as fittings in electronic
production equipment, such as crest welders, reflow soldering
machines, DDC machines, reflow ovens, stretching machines, and
screen printing machines.
Main application models: 101-A,102-B,40341,80325 etc.
3. Manual toggle clamps are used in the assembly line and testing
process of small motors and electric tools.
Main application models: 36092,
12050,12050-U,101-A,102-B,301-A,304-C etc.
4. The metal shell of various electrical appliances, such as water
heaters, microwave ovens, air conditioners, refrigerators,
cabinets, and chassis is quickly clamped on the "welding molds" as
a fixture.
Main application models: 11412,203-F,225-D,21502-B,102-B,101-D
Push-Pull Toggle Clamp
The handle of this clamp moves the securing bar in a straight line.
Once the handle is engaged, the securing arm pushes into an object,
locks, and holds it in place. Generally, you can lock the clamp in
two positions. They are also suited for clamping different objects
together, such as pieces of wood and molds.
The push-pull clamp has a superb plunger that travels in and out.
As the name suggests, the clamp offers push and pull offers. It may
lock in either the pull or push position. It may also be referred
to as a straight line or plunger-style clamp.
Basic Mechanics of Toggle Clamp
A toggle clamp is a linkage that can apply a powerful clamping
force. The good news is that it requires little effort to lock or
even unlock. With its ease of use, it’s no wonder why many people
make it a leading option. Typically, this is accomplished thru a
geometric trick. This directs the force into the base. But it does
not oppose the lock or unlock action. You can look at common styles
that demonstrate the trick.
With this geometric trick, you will be fascinated by how a toggle
performs from start to finish. This fantastic feature makes
accomplishing a task easier than you imagine. While toggles have
lots of designs, the operational principle is the same in most
cases.
| Q'TY PCS | 1-100 | 101-500 | 501-1000 | 1001-2000 | 2001-5000 | 5000+ |
| EST.DAYS | 1-3 | 3-5 | 5-7 | 7-15 | 15-25 | 25-35 |
