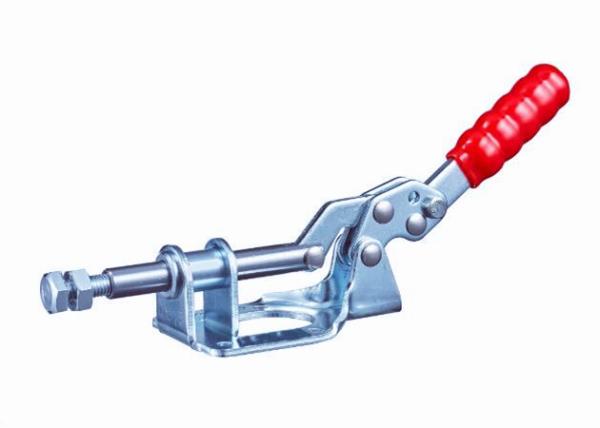

    136KG Manual Straight Line Push Pull Toggle Clamp Destaco 605 / GH-302FM

    Manual Quick Release Straight Line Push Pull Toggle Clamp Destaco 605 / GH-302FM


    Push and Pull Type Hold Down Handle Toggle Clamp Destaco 605 / GH-302FM


    Features:
    Quick release, medium holding capacity
    Application:
    Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

    Weight (g)Holding Capacity (kg)Plunger Strock (mm)Handle Opens (º)Spindle Supplied
    30013632180GH-SA-085012

    Automobile Industry

    1. Production of various automobile steering wheels:
    1) used as fixtures for welding jigs. Main application models: 201,201-A,201-B,101-B.

    2) used as end caps for foaming molds. Main application models: 304,305 series.

    2. Production of various automobile interior accessories:
    1) Dashboards, etc. (using PP, ABS materials); used as clamping fixtures for "casting molds";
    Main application models: 431,40341.

    2) Dashboards, etc. (using PU materials); used as clamping fixtures for "foaming molds"; and
    Main application models: 40341,10448,20448,702-D etc.
    3) Inspection of interior accessories is used as positioning and locking fixtures for testing jigs;
    Main application models: 101-D,12130,12135,302-F etc.

    4) Lining (with leather, wool cloth materials) is used as fixing fixtures for fixing upper and lower molds on the press.
    Main application models: 40370,40380.

    3. The rivets and welds on the chassis of small cars such as minibuses, jeeps and sedans are used as positioning and locking fixtures for riveting and welding jigs.
    Main application models: 702-C,702-D,702-K,303-E,304-H etc.

    4. Welding and welding inspection of various door panels are used as positioning bolts and fixtures for welding and testing molds.
    Main application models: 302-FM, 702-C,702-D,101-E,10247,12130,12135,12137,304-E etc.

    5. Welding of various automobile roof and side windows is used as fixtures for welding fittings.
    Main application models: 11412,203-F,21502-B etc.

    6. Welding of various car seats is used as positioning bolts and fixtures for welding fittings.
    Main application models: 11412,12265,102-B,36020,303-E etc.

    7. The production of molded foams for luxury car seats is used as fixtures for foaming molds.
    Main application models: 702-D,40341,304-H, etc.

    8. The production of various automobile (motorcycle) mufflers is used as fixtures for welding jigs.
    Main application models: 11412,10247,12305,22175,25382,36020,303-E,305-H etc.

    9. The production of various automobile (motorcycle) carburetors is used as fixtures for jigs and fixtures for drilling machines.
    Main application models: 201-B,21382,21383,21384 etc.

    10. The production of various automobile (motorcycle) wiring harness and electrical appliances is used as fixtures for testing jigs. Some of them are also used for assembling fixtures during assembly.
    Main application models: 201,201-A,201-B,101-A etc.


    Bicycle Industry (including baby strollers and other non-motor vehicles)


    1. For welding of car frames (commonly known as a tripod), a manual toggle clamp is used as positioning bolts and fixtures for assembly (or molding) welding molds.
    Main application models: 30509,30609,101-EL,10247 etc.

    2. Welding of front and rear forks and guard frames is used as positioning bolts and fixtures for welding fittings.
    Main application models: 302-FM, 11412,203-F,101-E,304-E,36020 etc.

    Basic Mechanics of Toggle Clamp
    A toggle clamp is a linkage that can apply a powerful clamping force. The good news is that it requires little effort to lock or even unlock. With its ease of use, it’s no wonder why many people make it a leading option. Typically, this is accomplished thru a geometric trick. This directs the force into the base. But it does not oppose the lock or unlock action. You can look at common styles that demonstrate the trick.
    With this geometric trick, you will be fascinated by how a toggle performs from start to finish. This fantastic feature makes accomplishing a task easier than you imagine. While toggles have lots of designs, the operational principle is the same in most cases.

    Q'TY PCS1-100101-500501-10001001-20002001-50005000+
    EST.DAYS1-33-55-77-1515-2525-35
