Horizontal Handle Toggle Clamp Used Injection Molding Ring Destaco

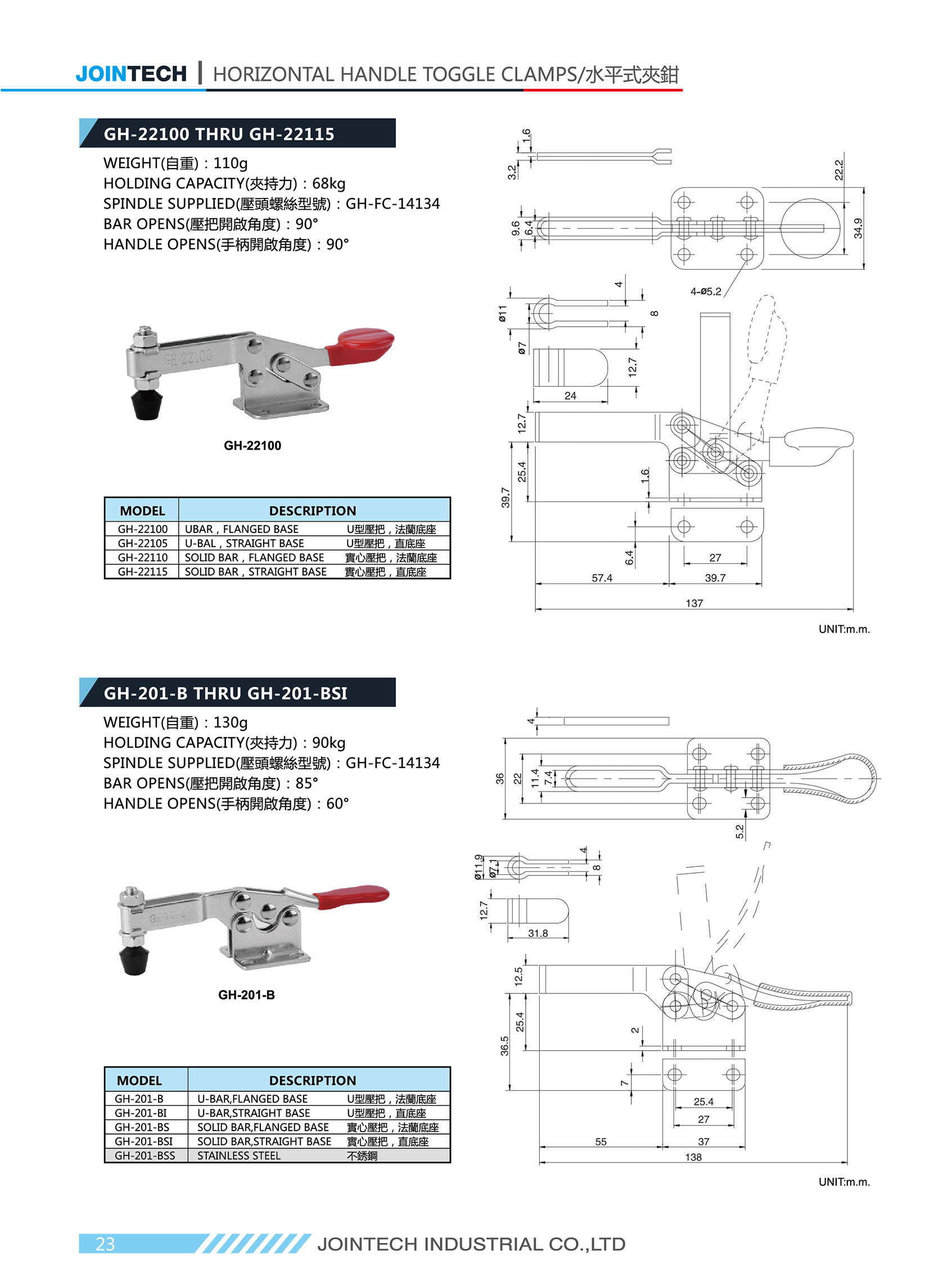

215-U / GH-201B
Horizontal Hold Down Handle Toggle Clamp Destaco 215-U / GH-201B
Features:
Quick release, small holding capacity
Application:
Welding, machining, checking fixture, assembly fixture,
woodholding, metal holding, workholding clamps
| Weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
| 130 | 90 | 85 | 60 | GH-FC-14134 |
Toy Manufacturing Industry
1. Electronic toy manufacturing industry.
2. Plastic modification manufacturing industry: Generally used in
the production line with injection molding ring. Manual toggle
clamps are used for opening and closing the upper and lower molds
on the molds of its production line.
Main application models: 20235,201-B,302-F etc.
Printing Machinery Manufacturing Industry
Manual toggle clamps are used as fittings for such machines, such
as stretcher machines (also known as stretching machines), copy
boards (also known as exposure machines), and screen printing
machines. This kind of machinery is not only used for ordinary text
and pattern printing but also more for the manufacture of PCB
boards in the electronics industry.
Main application models: 201-B, 11412,203-F,203-P,12265.
Automobile Industry
1. Production of various automobile interior accessories:
1) Dashboards, etc. (using PP, ABS materials); used as clamping
fixtures for "casting molds";
Main application models: 431,40341.
2) Dashboards, etc. (using PU materials); used as clamping fixtures
for "foaming molds"; and
Main application models: 40341,10448,20448,702-D etc.
3) Inspection of interior accessories is used as positioning and
locking fixtures for testing jigs;
Main application models: 101-D,12130,12135,302-F etc.
4) Lining (with leather, wool cloth materials) is used as fixing
fixtures for fixing upper and lower molds on the press.
Main application models: 40370,40380.
2. The rivets and welds on the chassis of small cars such as
minibuses, jeeps and sedans are used as positioning and locking
fixtures for riveting and welding jigs.
Main application models: 702-C,702-D,702-K,303-E,304-H etc.
3. In the production of partially refitted auto bodies, the manual
toggle clamp is used in the assembly and welding of auto bodies.
Main application models: F clamps and Toggle Pliers.
4. Manual toggle clamps are used for local spot welding during
assembly in small and medium sized automobile plants.
Main application models: Toggle Pliers.
5. Production of luxurious minibus and bus bodies:
1) Body keel welding is used as fixtures for welding jigs.
Main application models: 702-D,10247,12265,11412 etc.
2) For welding of the outer metal plate of the car body, manual
toggle clamps are used as fixtures.
Main application models: F clamps and Toggle Pliers.
3) For the adhesion of super-luxury bus and minibus interior
accessories, manual toggle clamps are used for adhesion and
fixation between interior accessories and auto bodies.
Main application models: F clamps.
Note: Manual toggle clamps can be used for all products or parts
that are similar to the above categories regarding the
manufacturing materials and production methods and have the
characteristics of continuous mass production.
Shoemaking Industry
It refers to the PU sole produced by PU foaming mode, and manual
toggle clamps are used as a fixture in PU foaming molds for sole
manufacture.
Main application models: 10448.
Note: Manual toggle clamps can be used for all products or parts
that are produced with PU foaming methods and have the
characteristics of continuous mass production.
Note: PU has been widely used in military, sports, construction and
daily necessities. Manual toggle clamps can be used for products
produced with PU foaming methods.
Plastic Machinery Manufacturing Industry
Manual toggle clamps are used as fittings for such machines as
plastic crushers, vibration screens, and dryers.
Main application models: 431,101-B,40341 etc.
