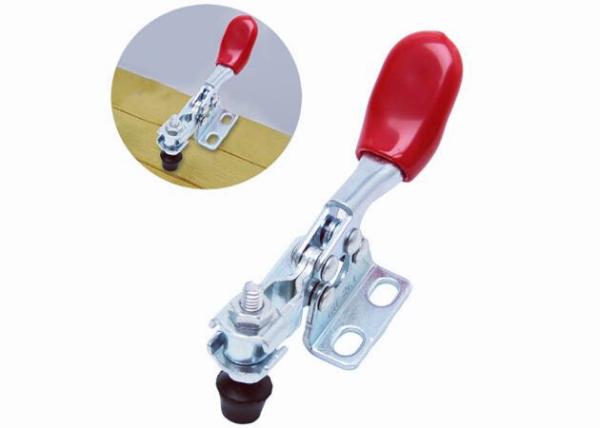

Destaco Minuature Horizontal Handle Toggle Clamp 205-U / GH-201 Made In China

Manual Horizontal Hold Down Handle Bar Toggle Clamp Destaco 205-U / GH-201

Features:
Quick release, small holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps

Furniture Manufacturing Industry

1. Metal furniture - furniture made of metal shapes. Manual toggle clamps are used for fixtures on "welding jigs."
Main application models: 201,11412,203-F,225-D,302-F,304,305 series etc.

2. Solid wood furniture - that is, furniture made of logs, quick fixtures are used in woodworking machines, such as "profiling woodworking milling machines" and "woodworking chamfering machines".
Main application models: 200-W-220-WLH series,21385,225-D etc.

3. For carved furniture, such as "mahogany furniture," manual toggle clamps are used as fixtures on woodworking carving machines.
Main application models: 220-WLH,302-D etc.

4. Oriented strand lumber production - that is, the log is processed into the oriented strand lumber, which is used as a fixture on the "board-sawing machine."
Main application models: F clamps.

Note: Plate furniture - furniture made of various plywood, with one or two manual toggle clamps occasionally used.

Note: All products or parts can be used when similar to the above four points regarding the manufacture of materials and production methods (e.g., fitness equipment such as treadmills, musical instruments and other instruments made of solid wood, other carved products, flooring made of oriented strand lumber) and having the characteristics of continuous mass production.

Bicycle Industry (including baby strollers and other non-motor vehicles)

1. For welding of car frames (commonly known as a tripod), a manual toggle clamp is used as positioning bolts and fixtures for assembly (or molding) welding molds.
Main application models: 30509,30609,101-EL,10247 etc.

2. Welding of front and rear forks and guard frames is used as positioning bolts and fixtures for welding fittings.
Main application models: 201, 11412,203-F,101-E,304-E,36020 etc.

Automobile Industry

1. Production of various automobile interior accessories:
1) Dashboards, etc. (using PP, ABS materials); used as clamping fixtures for "casting molds";
Main application models: 431,40341.

2) Dashboards, etc. (using PU materials); used as clamping fixtures for "foaming molds"; and
Main application models: 40341,10448,20448,702-D etc.
3) Inspection of interior accessories is used as positioning and locking fixtures for testing jigs;
Main application models: 201, 101-D,12130,12135,302-F etc.

4) Lining (with leather, wool cloth materials) is used as fixing fixtures for fixing upper and lower molds on the press.
Main application models: 40370,40380.

2. The rivets and welds on the chassis of small cars such as minibuses, jeeps and sedans are used as positioning and locking fixtures for riveting and welding jigs.
Main application models: 702-C,702-D,702-K,303-E,304-H etc.

3. In the production of partially refitted auto bodies, the manual toggle clamp is used in the assembly and welding of auto bodies.
Main application models: F clamps and Toggle Pliers.

4. Manual toggle clamps are used for local spot welding during assembly in small and medium sized automobile plants.
Main application models: Toggle Pliers.

5. Production of luxurious minibus and bus bodies:
1) Body keel welding is used as fixtures for welding jigs.
Main application models: 702-D,10247,12265,11412 etc.

2) For welding of the outer metal plate of the car body, manual toggle clamps are used as fixtures.
Main application models: F clamps and Toggle Pliers.

3) For the adhesion of super-luxury bus and minibus interior accessories, manual toggle clamps are used for adhesion and fixation between interior accessories and auto bodies.
Main application models: F clamps.

Note: Manual toggle clamps can be used for all products or parts that are similar to the above categories regarding the manufacturing materials and production methods and have the characteristics of continuous mass production.

Jointech Industrial Co.,Ltd is a R&D, manufacturing and sales company. In the past over 20 years, we have been focusing on the development of toggle clamps, toggle hasps, locking pliers and hose clamps. By constant accumulation and innovation, Jointech has made itself to be a new enterprise with strong technical capability and well-organized management. With the help of precise CNC machines and skilled employees, our products have been sold out to over 50 different countries.
Jointech specializes in development and design of aircraft, automobile and all manufacturing and processing industries, strives for the manufacturing industry in China to provide reliable, durable, effective and accurate tools. Jointech offers all types of fixtures for customers, not only provides all kinds of universal fixtures, but also ables to produce customized ones as per customer's requirements. People from home and abroad are warmly welcome to our factory for business activities! We bet our services will be different!
