High Base Horizontal Handle Toggle Clamp Used on Furniture
Manufacturing 200-WH

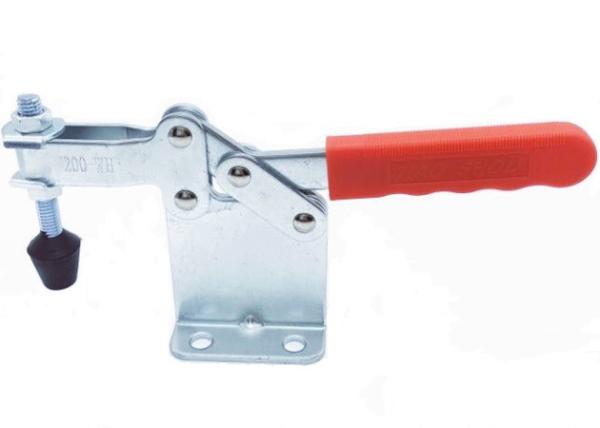

Quick Release Horizontal Hold Down Handle Toggle Clamp GH-200-WH
Features:
Quick release, big holding capacity
Application:
Welding, machining, checking fixture, assembly fixture,
woodholding, metal holding, workholding clamps
| weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
| 790 | 450 | 84 | 85 | GH-FC-38412 |
Furniture Manufacturing Industry
1. Metal furniture - furniture made of metal shapes. Manual toggle
clamps are used for fixtures on "welding jigs."
Main application models: 200-WH, 11412,203-F,225-D,302-F,304,305
series etc.
2. Solid wood furniture - that is, furniture made of logs, quick
fixtures are used in woodworking machines, such as "profiling
woodworking milling machines" and "woodworking chamfering
machines".
Main application models: 200-W-220-WLH series,21385,225-D etc.
3. For carved furniture, such as "mahogany furniture," manual
toggle clamps are used as fixtures on woodworking carving machines.
Main application models: 200-WH, 220-WLH,302-D etc.
4. Oriented strand lumber production - that is, the log is
processed into the oriented strand lumber, which is used as a
fixture on the "board-sawing machine."
Main application models: F clamps.
Note: Plate furniture - furniture made of various plywood, with one
or two manual toggle clamps occasionally used.
Note: All products or parts can be used when similar to the above
four points regarding the manufacture of materials and production
methods (e.g., fitness equipment such as treadmills, musical
instruments and other instruments made of solid wood, other carved
products, flooring made of oriented strand lumber) and having the
characteristics of continuous mass production.
Container Manufacturing Industry
1. In the production of a dry box body, manual toggle clamps are
mainly used as positioning bolts and fixtures for welding molds of
the skeleton.
Main application models: 303-E,304-H,305-H,30607,101-J,204-G etc.
2. Production of refrigerated container boxes: similar to point
17-1.
3. For the production of the insulating layer for refrigerated
containers, manual toggle clamps are used as fixtures on "foaming
molds."
Main application models: 36224,36003 etc.
Note: One method of production is to make the inner and outer boxes
well and then fill the insulation materials. This method does not
require clamps (currently rare).
Aircraft Manufacturing Industry
1. In the production of body keels, the manual toggle clamp is used
in "welding molds". The main types of use vary from factory to
factory.
2. For the riveting of outer metal sheets and gluing of inner
accessories, manual toggle clamps are used as a fixture.
Main application models: F clamps.
Machinery Manufacturing Industry
For the production of modular machine tools, machining centers and
other machine tool equipment on its workbench or in the conversion
mechanism, manual toggle clamps can be used as fixtures and
change-over gears
Main application models: Push Pull Toggle Clamps.
Machining Industry
Manual toggle clamps can be used to replace the old stationary
fixture on the workbench of the milling machine, slotting machine,
drilling machine, boring machine, modular machine tool, machining
center, CNC (various) machine tools, and other mechanical
processing equipment process mechanical parts. Main application
models: Push-Pull Toggle Clamps.,Heavy Duty Weldable Toggle Clamps.
